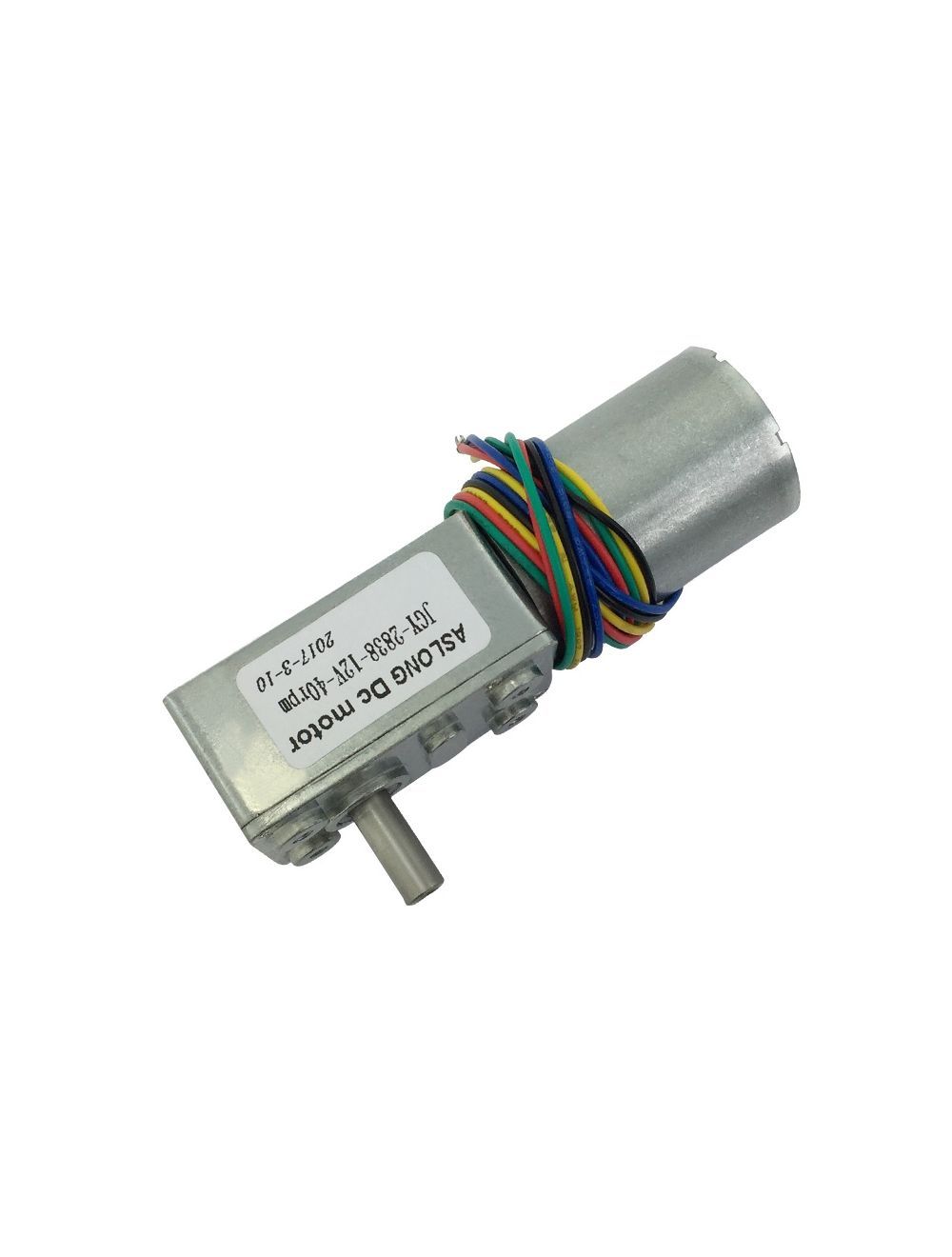

ASLONG Electric Motor JGY-2838

Voltage: DC12V
Optional Speed: 4RPM, 7RPM, 8RPM, 12RPM, 13RPM, 16RPM, 20RPM, 25RPM, 26RPM, 32RPM, 40RPM, 53RPM, 110RPM, 210RPM
Voltage: DC24V
Optional Speed: 8RPM, 13RPM, 25RPM, 32RPM, 40RPM, 53RPM, 210RPM
Wirings(Notice: The green wire is the speed signal output line, and it can't be connected any power supply, or it will be burnt):
CCW: red wire --> positive power supply(+), black and blue wires --> negative power supply(-);
CW: red wire --> positive power supply(+), yellow black and blue wires --> negative power supply(-)
Or CW: red wire --> positive power supply(+), black and blue wires --> negative power supply(-);
CCW: red wire --> positive power supply(+), yellow black and blue wires --> negative power supply(-).
