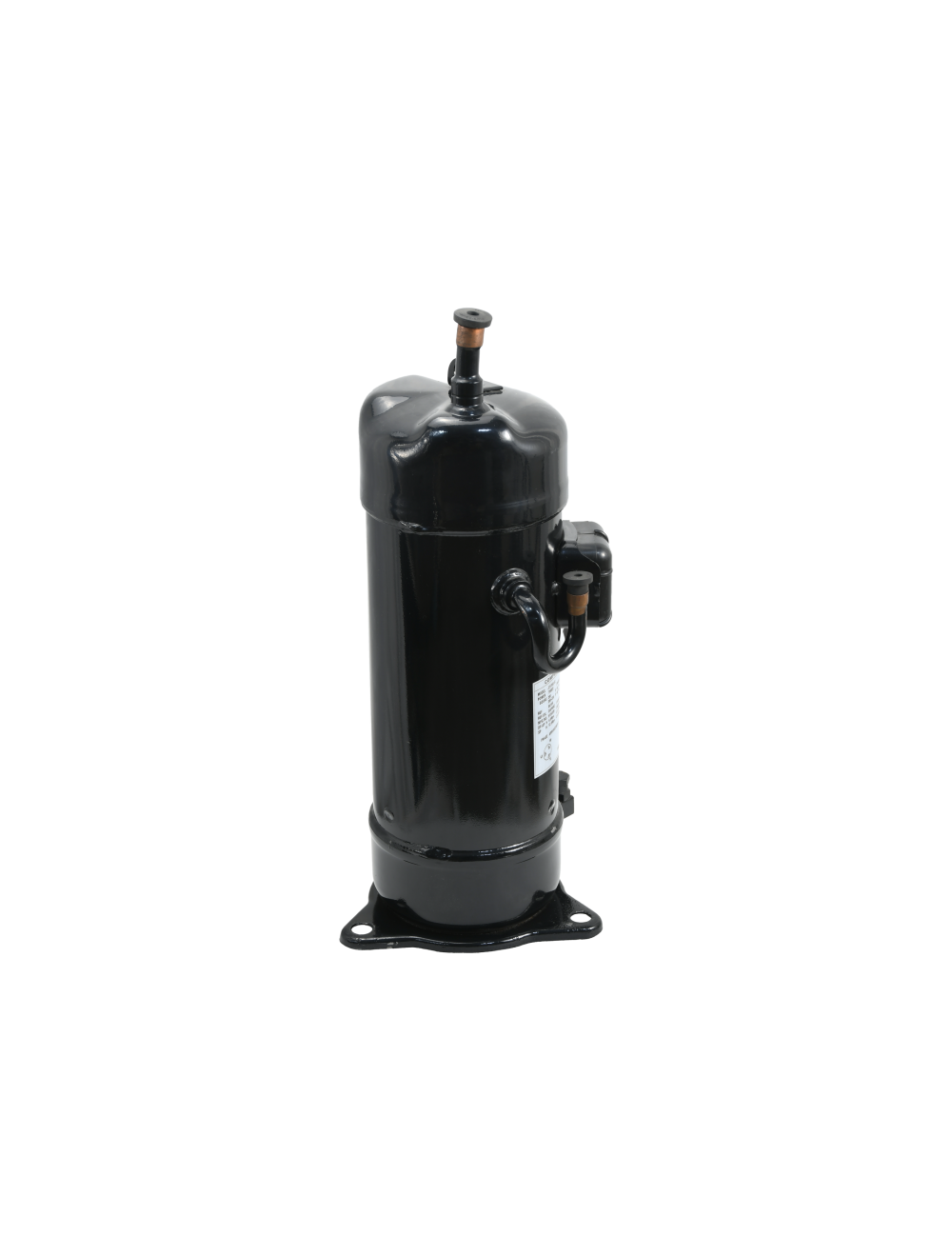

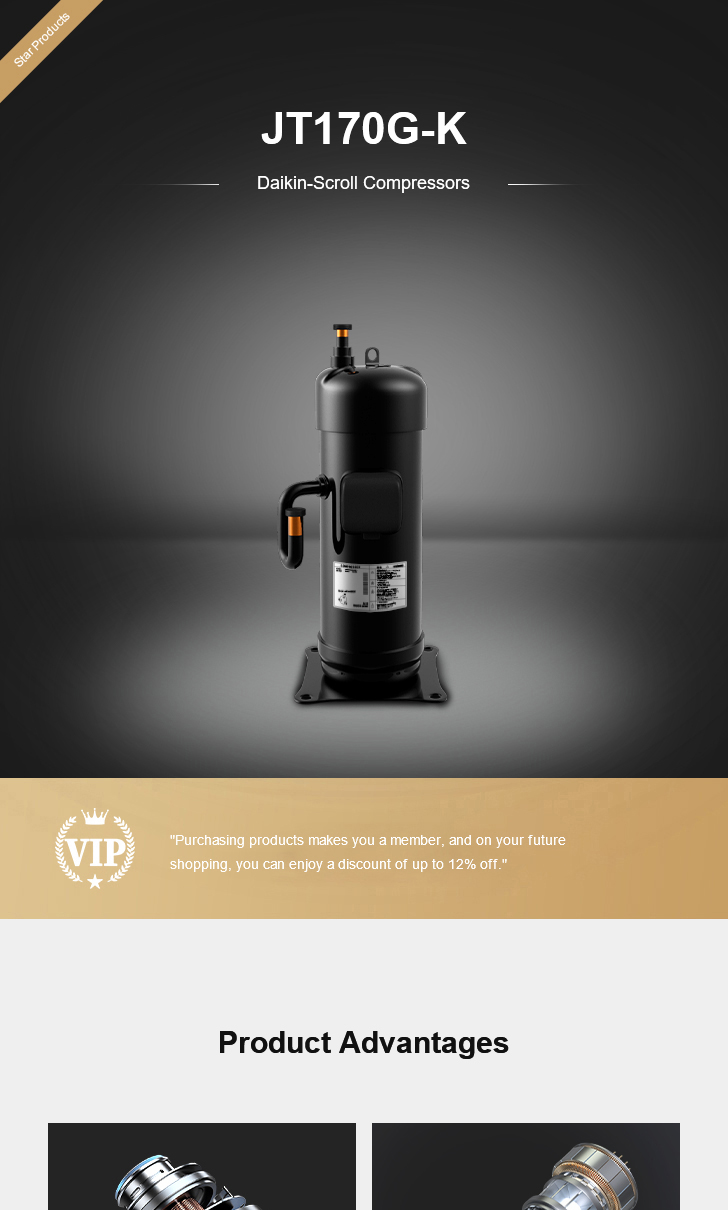

Daikin Compressor JT170G-K
Basic Infomation
Brand name:Daikin
Model number:JT170G-K
Product Condition:Factory New / New Surplus
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Download PDF
Payment methods:
Consulting support, including your preferred payment methods.

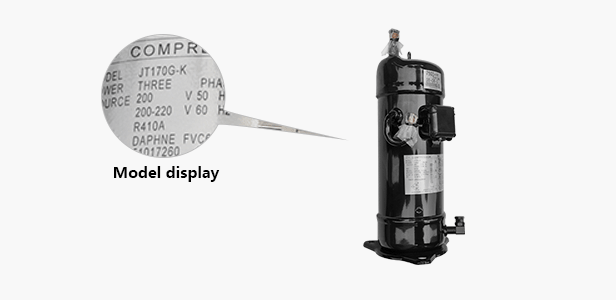

Product Display
|
Product Description |
Parameter |
||
|
Brand: |
DAIKIN |
Voltage: |
200V 50Hz |
|
Refrigerant: |
R410A |
|
200-220V 60Hz |
|
Model: |
JT170G-K |
Power: |
Three phase |
|
Origin: |
Thailand |
REF.Oil: |
Daphne FVC68D |
|
Specifications: |
Brand new |
MFG.NO: |
51017260 20200512 |
|
Type: |
Refrigeration compressor |
DP.AP: |
H 4.0MPa L4.0Mpa |
|
Application range: |
Refrigeration parts |
SP: |
12.0MPa |
|
Material: |
Stainless steel |
|
|

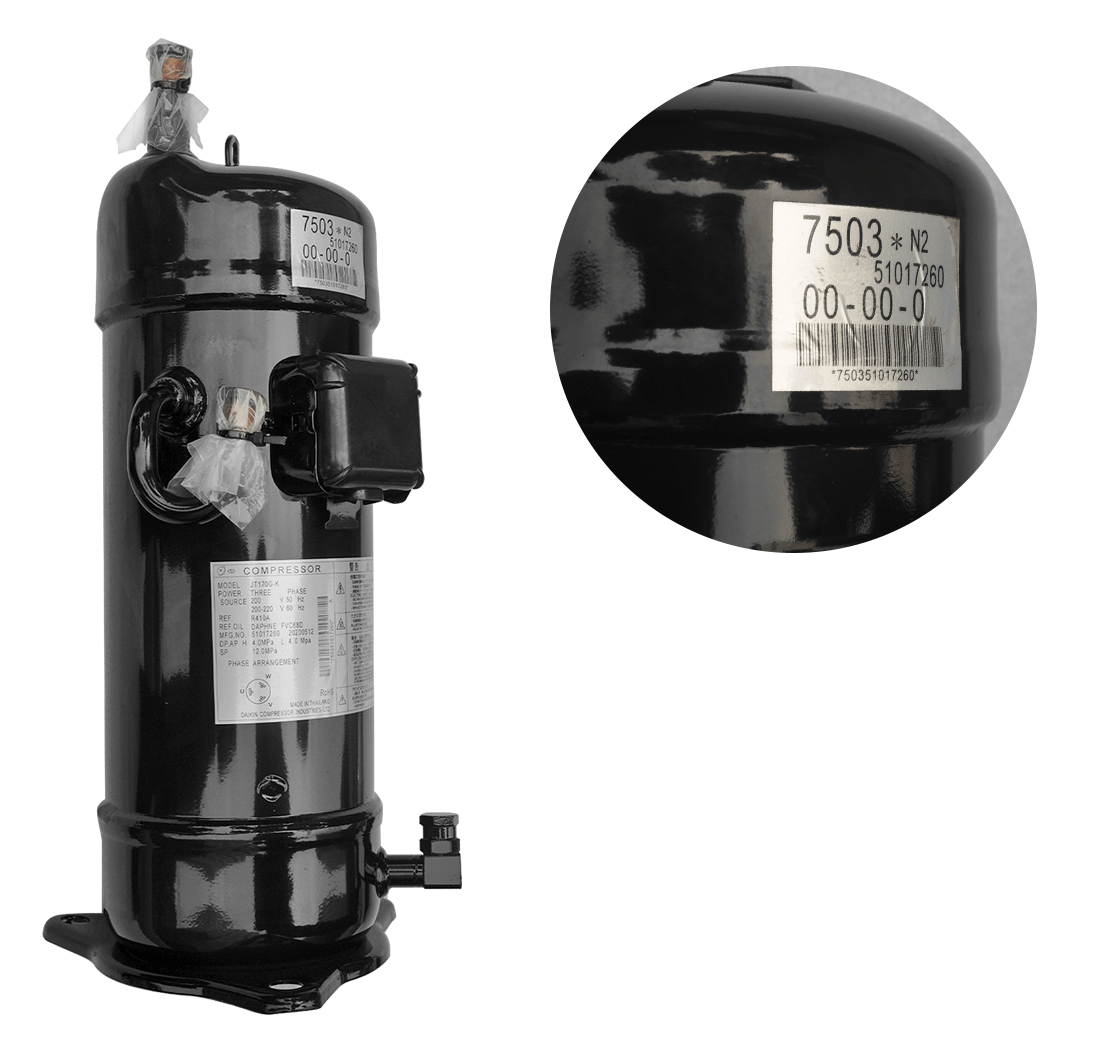

Product Media

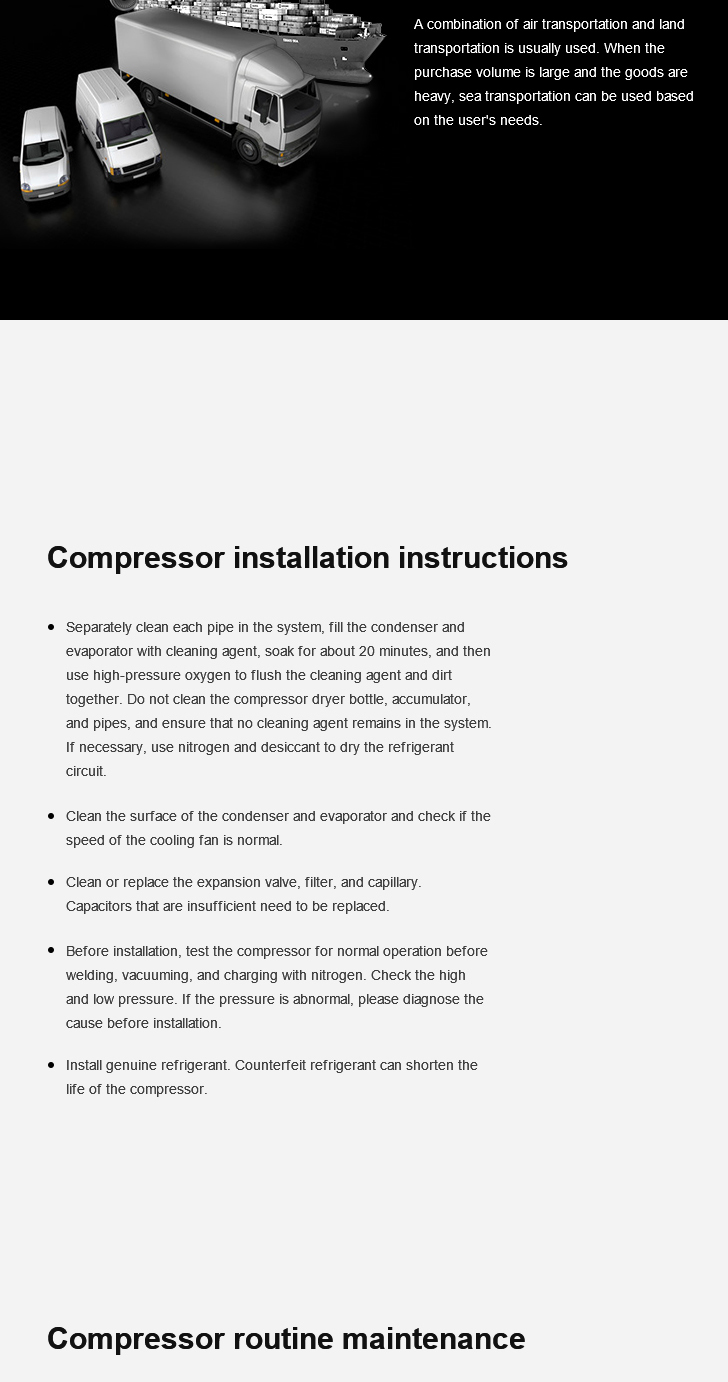

Installation Process
1. Check whether the refrigerating oil of the original compressor is too dirty. If the oil is too dirty, the system must be cleaned with nitrogen and the dry filter must be replaced.
2. Check whether the contacts of the compressor operation control AC contactor are stuck or have poor contact, causing the compressor to run out of phase. If the compressor is damaged in the coil winding, the AC contactor of the same model must be replaced.
3. Check and protect the circuit. The high and low pressure switch is in the closed state in the normal refrigerant compression state, the high pressure limit is less than or equal to 2.2Mpa, and the low pressure is more than or equal to 0.28Mpa.
4. Check whether the radiator is too dirty and must be cleaned.
5. Check whether the original equipment has refrigerant pressure, and repair it if the refrigerant is leaking.
1. Disconnect the power supply.
2. Disassemble the compressor and check its old compressor.
3. Nitrogen cleaning system, steps, disassemble the filter and blow in nitrogen from the inlet of the radiator, discharge from the outlet of the radiator, then blow in from the inlet of the filter, release from the return pipe of the compressor, and repeat cleaning several times.
4. Install the new compressor and weld the new filter.
5. Use nitrogen to pressure, 2.0Mpa pressure for leak detection for 30 minutes.
6. Circuit check and replace damaged parts, check power supply and control circuit.
7. Clean the radiator.
8. Vent the nitrogen and evacuate for 30 minutes.
9. Add the same type of refrigerant
10. Power-on debugging, check the compressor current and voltage, the normal pressure of the refrigerant, high pressure 1.7Mpa, low pressure 0.45Mpa, the refrigerant charge is expected to be 0.7kg/hp (10-30hp).
Packing & Shipping
Q: What means of transportation?
A: It can be shipped by air to the nearest international airport or by courier like DHL, TNT to your address; if it's not urgently required, they can also be shipped by sea to the nearest sea port.
Q: How long is your delivery time?
A: Usually, if it is in stock, it will take 5 to 10 days. Or, if there is no stock, it is 15-20 days, depending on the quantity.
Since its establishment in 1924, Daikin has developed into a comprehensive manufacturing enterprise spanning multiple fields such as air-conditioning, fluorine chemistry, and hydraulic machinery. Especially in the field of air conditioning, it is a professional enterprise integrating R&D, production, sales and service of air conditioners, refrigerants and compressors.
Picking a Compressor? Here’s What to Know
Please confirm the compressor is in stock and verify its core specifications before purchasing. We prioritize matching you with inventory from your local distributor, We provide actual photos for your confirmation before packaging and shipping.
Please select the expedited option at checkout. For lightweight items, you can request "overnight or 2-day shipping". Our customer service will then confirm the expedited schedule (including preparation and shipping), with most orders delivered globally within 2-5 days.
Please ensure that you are purchasing a genuine product, which includes original manufacturer certification and professional test reports.
Unless caused by human error, we promise free replacement or full refund. We provide a total of 3 years of warranty coverage, comprising a 1-year original manufacturer's warranty and an additional 2-year(In-House Warranty) extended warranty for repairs and support.
We offer a repair kit that includes essential installation parts prone to wear and tear. For details, please contact our customer service.
We support a variety of mainstream payment methods (e.g., Visa, PayPal, TT). Our checkout process is quick and secure, with orders processed within the same day.
If you require a single, high-volume delivery, please inquire about our bulk order or wholesale pricing. We can then coordinate a delivery schedule and shipping time.
1. Before shipping, we will send you photos of the actual product for your confirmation ( eg. nameplate, appearance, and report).
2. The product comes with a 1-year manufacturer warranty policy and 3-year in-house warranty.
3. If the product is damaged during transportation or cannot be repaired due to non-human-caused within 1 year, no return, we will directly refund or resend the new product.
4. For select items, we will include a repair kit ( Special Needs Customer Service ).
5. Enjoy a worry-free experience throughout the entire process. Feel free to request quotes and place orders with confidence, we will provide 5-star service until you are satisfied.
6. Shipping and Taxes: See Quotation.
