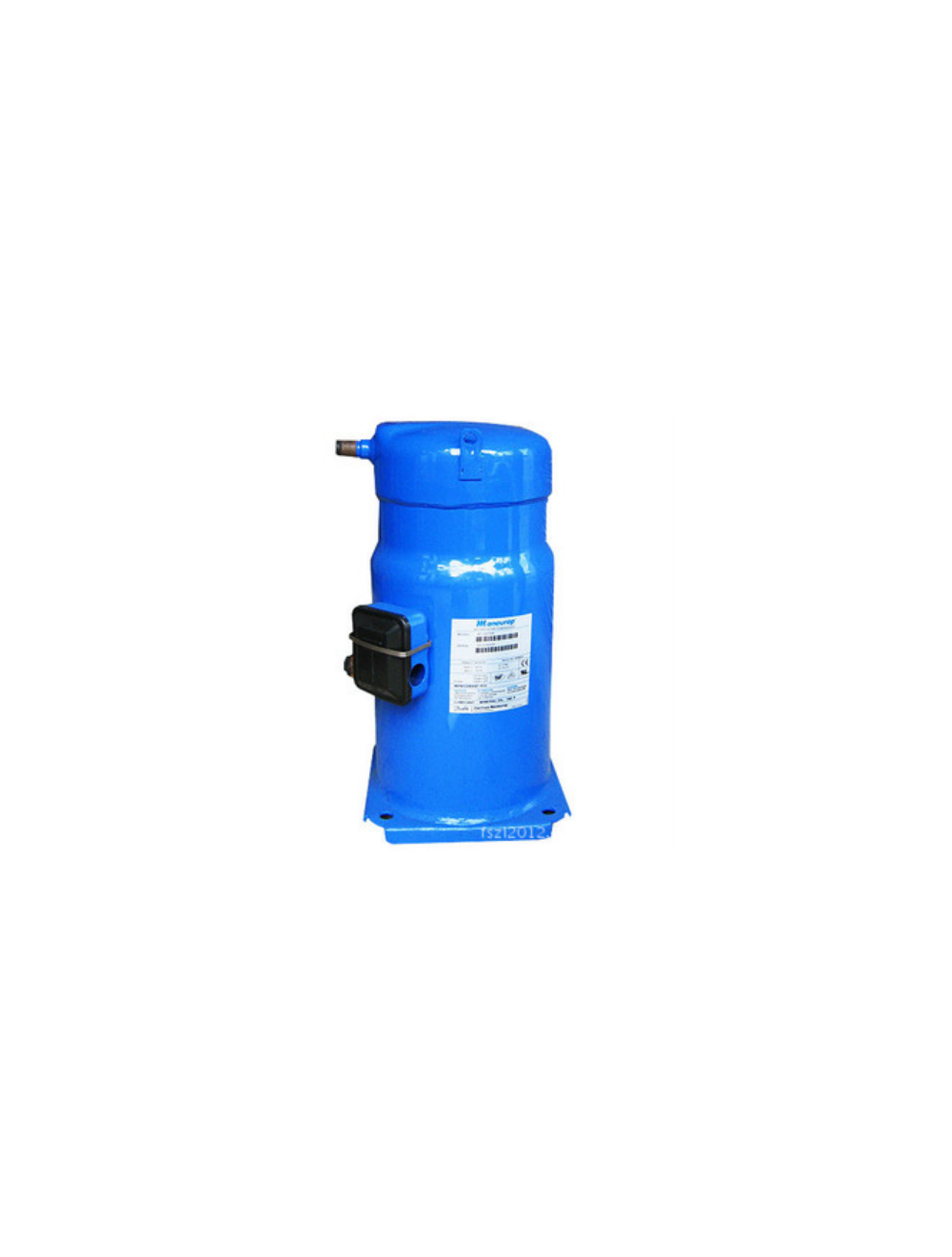

Danfoss Compressor MLM026T4LP9

Gross weight

33.32 kg

Net weight

30.84 kg

EAN

5702428406086

Capacity control

Fixed speed

Colour

Blue

Compressor power supply [V/Ph/Hz]

400/3/50 460/3/60

Configuration code

Single

Connection type

Brazed

Description

MLM026T4

Diameter [mm]

165 mm

Discharge connection height [mm]

379 mm

Discharge connection pipe size [in]

1/2 in

Discharge connection size [in]

1/2 in

Drawing number

0XC6300B-1

Economizer

No

Fitting standard

ODF

Frequency [Hz]

50/60

Gauge port HP

None

Gauge port LP

None

Glass mounting

Threaded

Glass torque [Nm]

53 Nm

High side max pressure (Ps)

31.1 bar

High value of nominal voltage at 50Hz [V]

400 V

High value of nominal voltage at 60Hz [V]

460 V

High value of voltage range at 50Hz [V]

460 V

High value of voltage range at 60Hz [V]

506 V

IP protection class

IP22

Low side max pressure (Ps)

26.2 bar

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

460 V

Low value of voltage range at 50Hz [V]

340 V

Low value of voltage range at 60Hz [V]

414 V

MCC

11 A

Model number

MLM026T4LP9

Motor protection

Internal overload protector

Nominal cooling capacity 60 kBTU/h

43.38 kBtu/h

Nominal cooling capacity at 60Hz

12.7 kW

Oil charge [L]

1.06 L

Oil drain

1/4'' flare

Oil equalization

None

Oil reference

160ABM

Oil type

Alkylbenzene

Packing format

Industrial pack

Packing quantity

12

Phase

3

Power connections

Spade

Refrigerant

R22

Relief valve

32 bar

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Segment usage

Refrigeration MT

Shipped instructions

Installation instructions

Shipped mounting

Mounting kit with grommets and sleeves

Shipped oil

Initial oil charge

Suction connection height [mm]

250 mm

Suction connection pipe size [in]

3/4 in

Suction connection size [in]

3/4 in

Technology

Scroll

Total height [mm]

412 mm

Type

MLM

Type designation

Compressor

Viscosity [cP]

32 cP
