Brand name:Danfoss
Model number:MLZ038T4LC9
Product Condition:Factory New / New Surplus
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Download PDF
Payment methods:Consulting support, including your preferred payment methods.
Quick Quote

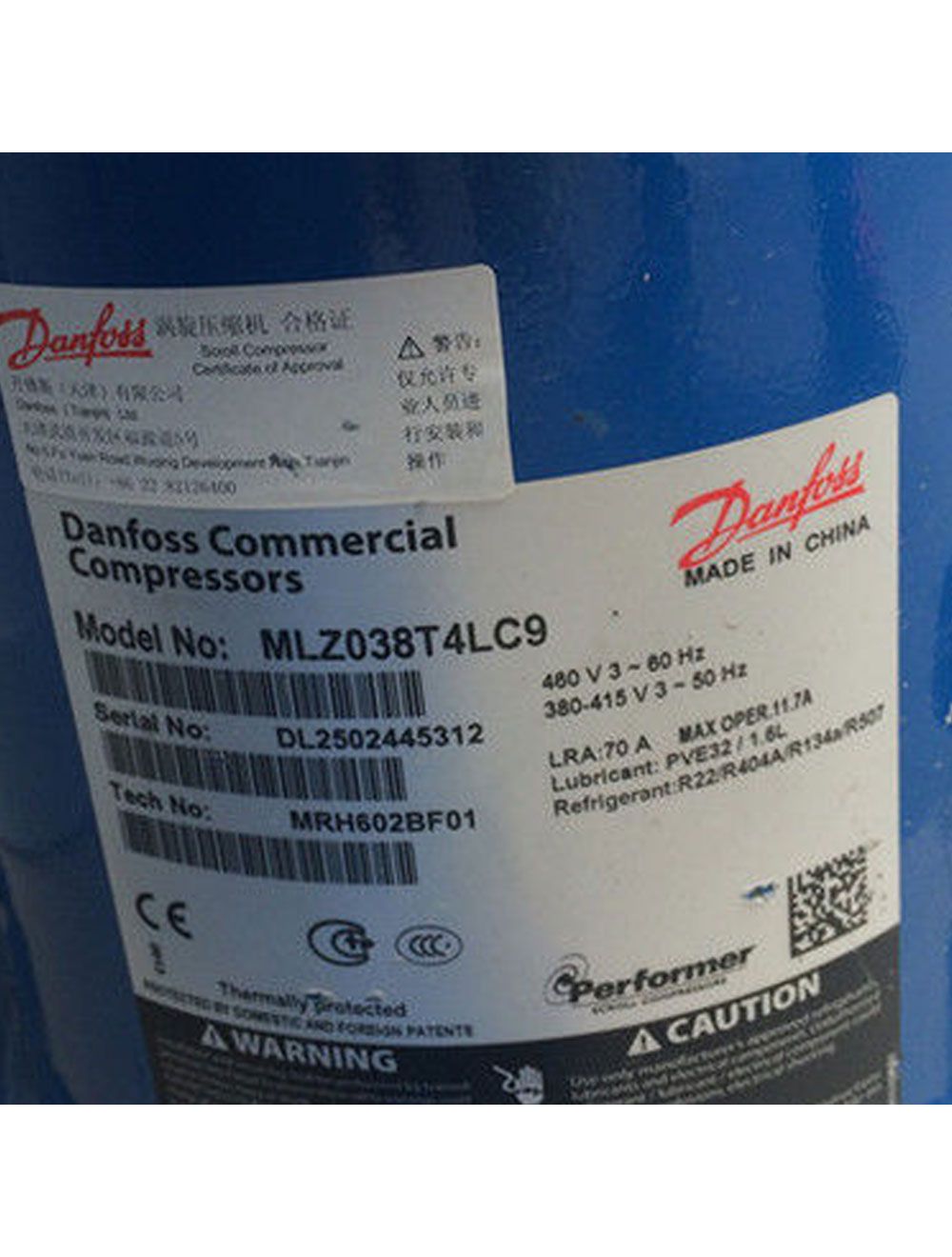

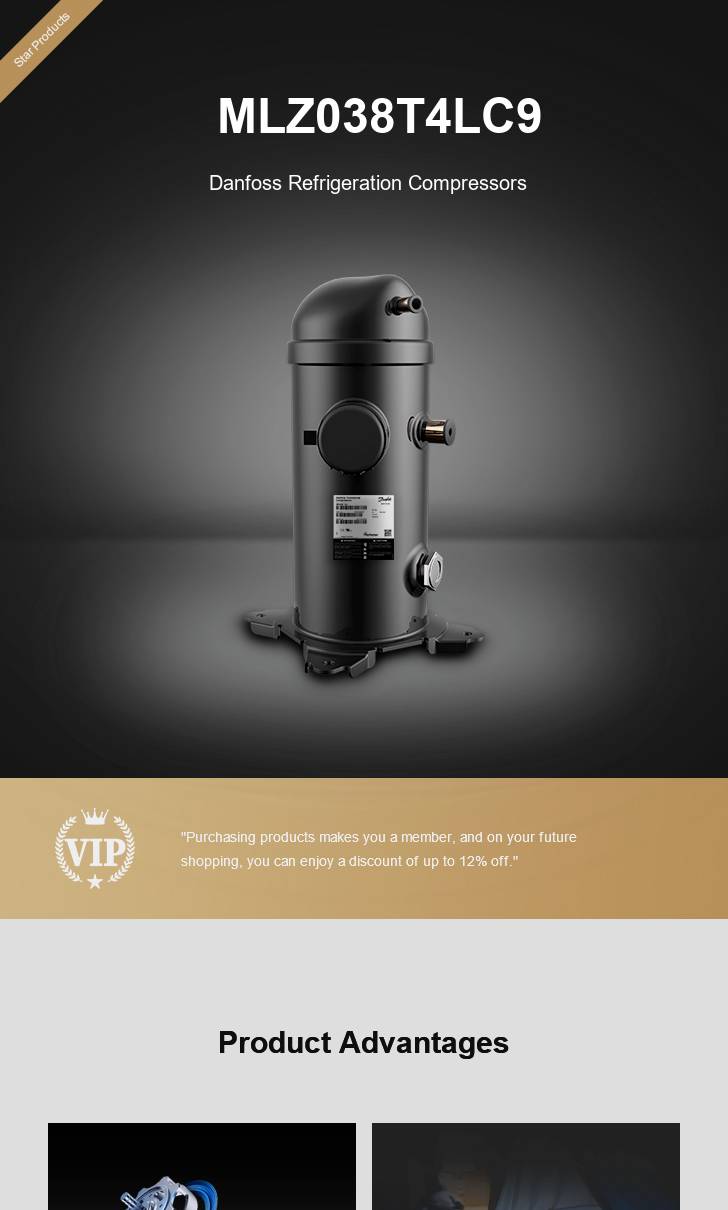

Scroll compressor, MLZ038T4LC9
Product details:
Gross weight:
41.99 kg
Net weight:
38.93 kg
EAN:
5702428217651
Capacity control:
Fixed speed
Colour:
Black
Compressor power supply [V/Ph/Hz]:
400/3/50 460/3/60
Configuration code:
Single
Connection type:
Brazed
Description:
MLZ038T4
Diameter [mm]:
184 mm
Discharge connection height [mm]:
422 mm
Discharge connection pipe size [in]:
1/2 in
Discharge connection size [in]:
Drawing number:
0XR6025B-2
Economizer:
No
Fitting standard:
ODF
Frequency [Hz]:
50/60
Gauge port HP:
None
Gauge port LP:
Glass mounting:
Threaded
Glass torque [Nm]:
53 Nm
High side max pressure (Ps):
31.1 bar
High value of nominal voltage at 50Hz [V]:
400 V
High value of nominal voltage at 60Hz [V]:
460 V
High value of voltage range at 50Hz [V]:
High value of voltage range at 60Hz [V]:
506 V
IP protection class:
IP22
Low side max pressure (Ps):
26.2 bar
Low value of nominal voltage at 50Hz [V]:
380 V
Low value of nominal voltage at 60Hz [V]:
Low value of voltage range at 50Hz [V]:
340 V
Low value of voltage range at 60Hz [V]:
414 V
LRA:
70 A
MCC:
15 A
Model number:
MLZ038T4LC9
Motor protection:
Internal overload protector
Nominal cooling capacity at 50Hz:
8.5 kW
Nominal cooling capacity at 60Hz:
10.7 kW
Number of starts per hour [Max]:
12
Oil charge [L]:
1.57 L
Oil drain:
1/4'' flare
Oil equalization:
Oil reference:
160HV
Oil type:
PVE
Packaging weight [Kg]:
40 kg
Packing format:
Single pack/pallet
Packing quantity:
16
Phase:
3
Power connections:
Screw connectors 10-32 UNF x 9.5
Refrigerant:
R134aR22R404AR407AR407CR407F
Refrigerant charge [kg] [Max]:
5.44 kg
Relief valve:
32 bar
RLA:
9.6 A
Rotational speed at 50Hz [rpm]:
2900 rpm
Rotational speed at 60Hz [rpm]:
3500 rpm
Segment usage:
Refrigeration MT
Shipped instructions:
Installation instructions
Shipped mounting:
Mounting kit with grommets and sleeves
Shipped oil:
Initial oil charge
Suction connection height [mm]:
280 mm
Suction connection pipe size [in]:
7/8 in
Suction connection size [in]:
Swept volume [cm3]:
80.95 cm3
Technology:
Scroll
Torque earth [Nm]:
2 Nm
Torque power [Nm]:
3 Nm
Total height [mm]:
455 mm
Type:
MLZ
Type designation:
Compressor
Viscosity [cP]:
32 cP
Winding resistance 1-2 [Ohm]:
2.32 Ohm
Winding resistance 1-3 [Ohm]:
2.33 Ohm
Winding resistance 2-3 [Ohm]:
2.36 Ohm
Inventory Availability:Please confirm the compressor is in stock and verify its core specifications before purchasing. We prioritize matching you with inventory from your local distributor, We provide actual photos for your confirmation before packaging and shipping.
