Brand name:Danfoss
Model number:MTZ28JE1AVE
Price:Inquiry for discount
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Download PDF
Payment methods:Consulting support, including your preferred payment methods.
Quick Quote

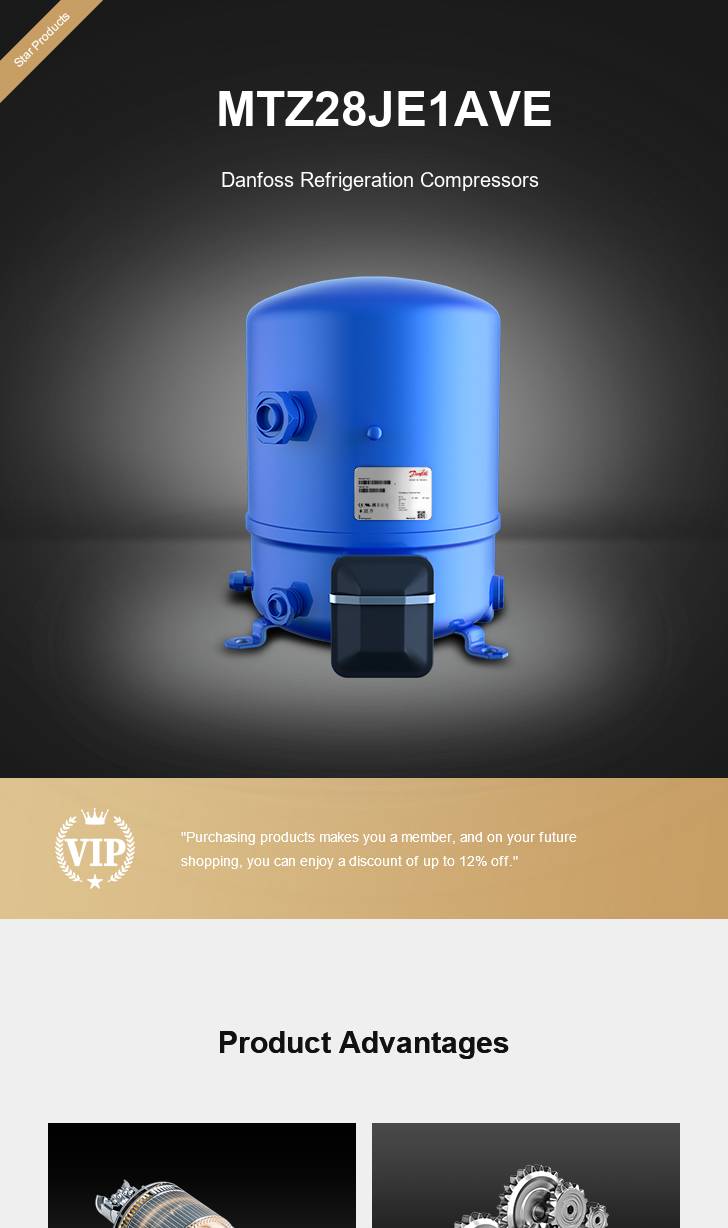

Danfoss Compressor MTZ28JE1AVE
Product details
Gross weight
24.75 kg
Net weight
23 kg
EAN
5702428980555
Approval standard
CEUL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
1.84 Ohm
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Capacity of capacitor A
25 μF
Capacity of capacitor B
135 μF
Capacity of capacitor C
Colour
Blue
Compressor power supply [V/Ph/Hz]
208-230/1/60
Configuration code
Single
Connection type
Rotolock
Cylinder
1
Description
MTZ028-1
Diameter [mm]
224 mm
Discharge connection height [mm]
68 mm
Discharge connection mounting torque [Nm]
80 N-m
Discharge connection pipe size [in]
1/2 in
Discharge connection rotolock size [in]
1 in
Discharge connection size [in]
Discharge connection sleeve pipe size [in]
Drawing number
8501020e
Economizer
No
Factory HP [bar]
25 bar
Factory LP [bar]
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Generation code
A
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High side max pressure (Ps)
29.4 bar
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
0.3 L
High value of nominal voltage at 50Hz [V]
0 V
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 50Hz [V]
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP55 (with cable gland)
Low side max pressure (Ps)
22.6 bar
Low Side TS Max
50 °C
Low Side TS Min
Low Side Volume
7.5 L
Low value of nominal voltage at 50Hz [V]
Low value of nominal voltage at 60Hz [V]
208 V
Low value of voltage range at 50Hz [V]
Low value of voltage range at 60Hz [V]
187 V
LRA
81 A
Main winding resistance for single-phase compressors [Ohm]
0.68 Ohm
MCC
25 A
Model number
MTZ28JE1AVE
Motor protection
Internal overload protector
Mounting torque [Nm]
Nominal cooling capacity at 50Hz
3.4 kW
Nominal cooling capacity at 60Hz
4.7 kW
Number of starts per hour [Max]
12
Oil charge [L]
0.95 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
175PZ
Packaging height [mm]
385 mm
Packaging length [mm]
330 mm
Packaging weight [Kg]
26 kg
Packaging width [mm]
295 mm
Packing format
Single pack
Packing quantity
Phase
Power connections
Spade
Refrigerant
R134aR404AR407AR407CR407FR448AR449AR452AR513A
Refrigerant charge [kg] [Max]
2.5 kg
Relief valve
Rotational speed at 50Hz [rpm]
0 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
Segment usage
Air conditioningRefrigeration MT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
263 mm
Suction connection mounting torque [Nm]
90 N-m
Suction connection pipe size [in]
5/8 in
Suction connection rotolock size [in]
1 1/4 in
Suction connection size [in]
Suction connection sleeve pipe size [in]
Swept volume [cm3]
48.06 cm3
Technology
Reciprocating
Test dif [bar] [Max]
30 bar
Test HP [bar] [Max]
Test LP [bar] [Max]
Torque earth [Nm]
3 N-m
Torque power [Nm]
Total height [mm]
356 mm
Type
MTZ
Type designation
Compressor
Voltage of capacitor A [V]
440 V
Voltage of capacitor B [V]
330 V
Voltage of capacitor C [V]
?
