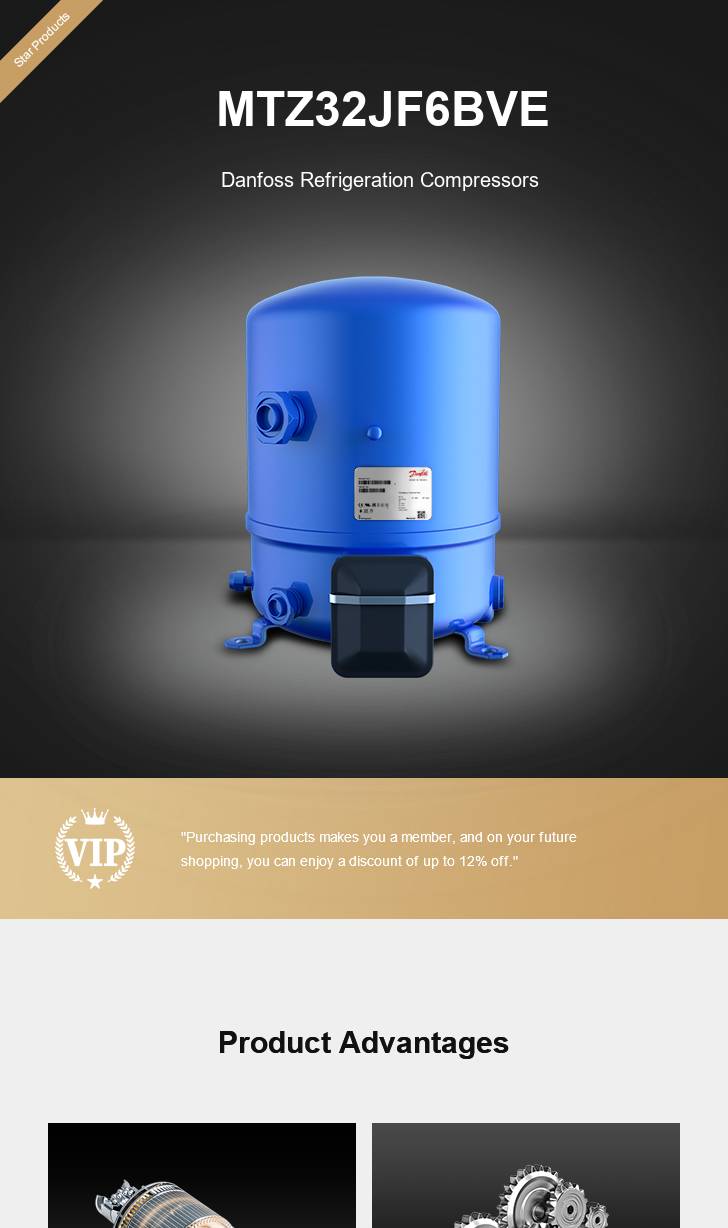

Danfoss Compressor MTZ32JF6BVE

Gross weight:

26.75 kg

Net weight:

25 kg

EAN:

5702428661485

Capacity control:

Fixed speed

Colour:

Blue

Compressor power supply [V/Ph/Hz]:

230/3/50

Configuration code:

Single

Connection type:

Rotolock

Cylinder:

1

Description:

MTZ032-6

Diameter [mm]:

224 mm

Discharge connection height [mm]:

68 mm

Discharge connection mounting torque [Nm]:

80 Nm

Discharge connection pipe size [in]:

1/2 in

Discharge connection rotolock size [in]:

1 in

Discharge connection size [in]:

1 in

Discharge connection sleeve pipe size [in]:

1/2 in

Drawing number:

8501025f

Economizer:

No

Factory HP [bar]:

25 bar

Factory LP [bar]:

25 bar

Fitting remark:

(shipped with rotolock version only)

Fitting sleeve:

ODF

Fitting standard:

Rotolock

Frequency [Hz]:

50

Gauge port HP:

None

Gauge port LP:

Schrader

Generation code:

B

Glass mounting:

Threaded

Glass torque [Nm]:

50 Nm

GP LP torque [Nm]:

15 Nm

High side max pressure (Ps):

29.4 bar

High Side TS Max:

150 °C

High Side TS Min:

-35 °C

High Side Volume:

0.3 L

High value of nominal voltage at 50Hz [V]:

230 V

High value of nominal voltage at 60Hz [V]:

0 V

High value of voltage range at 50Hz [V]:

253 V

High value of voltage range at 60Hz [V]:

0 V

IP protection class:

IP55 (with cable gland)

Low side max pressure (Ps):

22.6 bar

Low Side TS Max:

50 °C

Low Side TS Min:

-35 °C

Low Side Volume:

7.5 L

Low value of nominal voltage at 50Hz [V]:

230 V

Low value of nominal voltage at 60Hz [V]:

0 V

Low value of voltage range at 50Hz [V]:

207 V

Low value of voltage range at 60Hz [V]:

0 V

LRA:

44 A

MCC:

13 A

Model number:

MTZ32JF6BVE

Motor protection:

Internal overload protector

Mounting torque [Nm]:

15 Nm

Nominal cooling capacity at 50Hz:

4 kW

Nominal cooling capacity at 60Hz:

5.1 kW

Number of starts per hour [Max]:

12

Oil charge [L]:

0.95 L

Oil equalization:

3/8'' flare SAE

Oil equalization torque [Nm]:

30 Nm

Oil reference:

175PZ

Packaging height [mm]:

385 mm

Packaging length [mm]:

330 mm

Packaging weight [Kg]:

27 kg

Packaging width [mm]:

295 mm

Packing format:

Single pack

Packing quantity:

1

Phase:

3

Power connections:

Spade

Refrigerant:

R134a
R404A
R407A
R407C
R407F

Refrigerant charge [kg] [Max]:

2.5 kg

Relief valve:

None

Rotational speed at 50Hz [rpm]:

2900 rpm

Rotational speed at 60Hz [rpm]:

0 rpm

Segment usage:

Air conditioning
Refrigeration MT

Shipped fittings:

Suction and discharge solder sleeves, rotolock nuts and gaskets

Shipped instructions:

Installation instructions

Shipped mounting:

Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil:

Initial oil charge

Suction connection height [mm]:

263 mm

Suction connection mounting torque [Nm]:

90 Nm

Suction connection pipe size [in]:

5/8 in

Suction connection rotolock size [in]z:

1 1/4 in

Suction connection size [in]:

1 1/4 in

Suction connection sleeve pipe size [in]:

5/8 in

Swept volume [cm3]:

53.86 cm3

Technology:

Reciprocating

Test dif [bar] [Max]:

30 bar

Test HP [bar] [Max]:

30 bar

Test LP [bar] [Max]:

25 bar

Torque earth [Nm]:

3 Nm

Torque power [Nm]:

3 Nm

Total height [mm]:

356 mm

Type:

MTZ

Type designation:

Compressor

Winding resistance for three-phase compressors with identical windings [Ohm]:

2.01 Ohm
