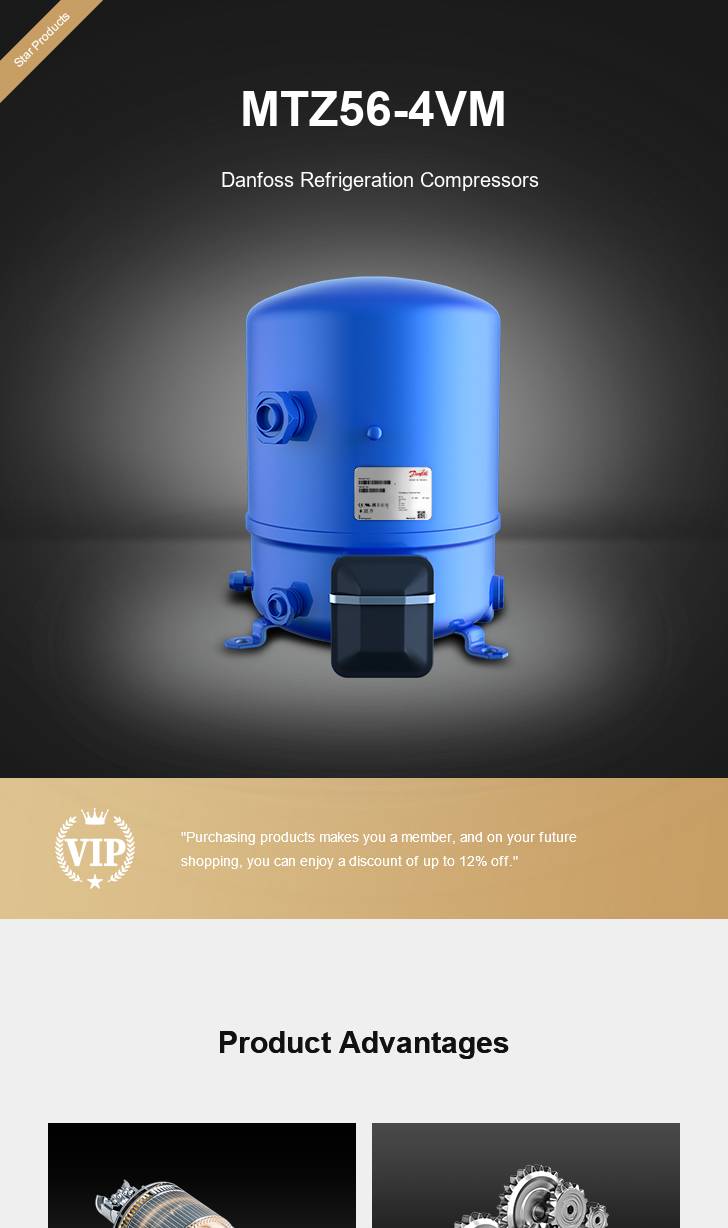

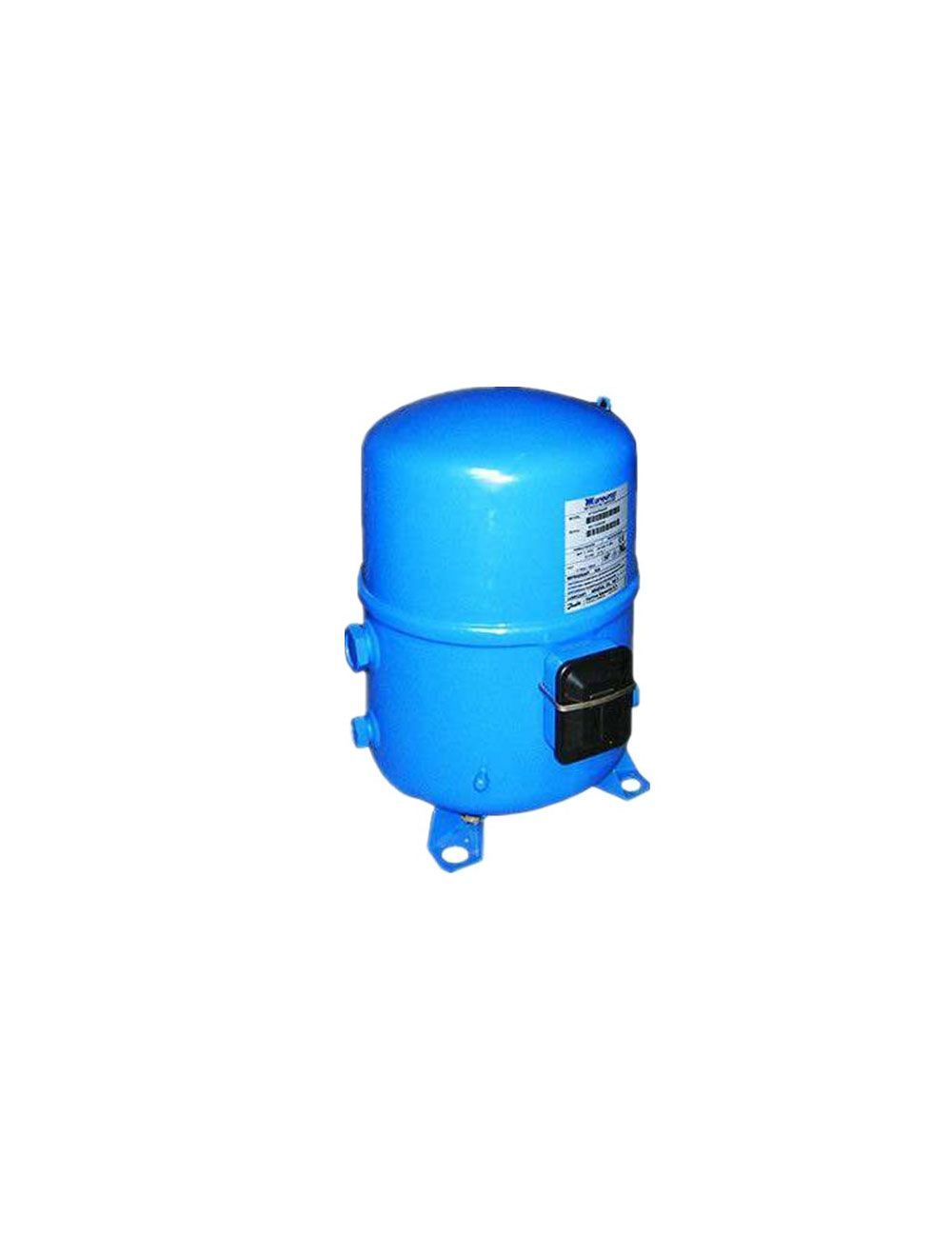

Danfoss Compressor MTZ56-4VM
Basic Infomation
Brand name:Danfoss
Model number:MTZ56-4VM
Product Condition:Factory New / New Surplus
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Download PDF
Payment methods:
Consulting support, including your preferred payment methods.
Danfoss Compressor MTZ56-4VM
Danfoss Maneurop refrigeration compressor R22 R404 MT/MTZ56-4VM 4.6HP
?
Maneurop(Danfoss) Reciprocating Compressor( MTZ/MT series )
Reciproating Compressor
Refrigerant: R22/R407
Maneurop MT/MTZ series compressors are of the hermetic reciprocating type and are designed for Medium and high evaporating temperature applications.
There are 26 different models with displacement ranging from 30-543cm3/rev.
Our Maneurop compressors are for 50Hz,motor code is 4, can be used for R22/R407C/R134a/R404A/R507?
?
1.piston /reciprocating?type compressors.
Voltage is 50Hz
the refrigerant?are ?R22/R407C/R134a/R404A/R507
there are MT/MTZ series
?
- original? from France.
?
6.Capacity: 1.5HP~13HP,High efficiency , Low noise
|
Item |
Air compressor |
|
Brand? |
Maneurop |
|
Model |
MT56-4VM |
|
Cooling capacity ? ? ?? |
16530W |
|
Input Power |
6.05KW |
|
Cop |
2.73w/w |
|
Displacement |
11.81m3/rev |
|
EER |
9.32Btu/h/W |
|
Oil quantity |
1.8dm3 |
|
Input current? |
10.27A |
|
Package |
One piece per carton or wooden case |
|
Application |
HVAC system, Air conditioner, refrigeration, cold storage |
?Type: Hermetic piston compressors
Producer: Maneurop
Series: MT
Model: MT56
Technical data
|
? |
? |
? |
|
Cylinder count: |
2 |
? |
|
Displacement?[m3/h]: |
16,73 |
? |
|
Cylinder capacity?[cm3]: |
96,1 |
? |
|
RPM?[min-1]: |
2900 |
? |
|
Weight?[kg]: |
37 |
? |
|
Oil charge?[dm3]: |
2 |
? |
|
Oil type: |
160P |
? |
|
Crankcase heater type: |
PTC 35 W |
? |
|
Maximum system test pressure low side / high side: |
25 / 30 |
? |
|
Maximum number of starts without softstart?[1/h]: |
12 |
? |
|
Refrigerant charge limit?[dm3]: |
5 |
? |
|
Refrigerant: |
R22 |
? |
|
Sound power?[dB]: |
81 |
? |
|
Sound power with accoustic hood?[dB]: |
74 |
? |
Connections
|
? |
milimeters |
inches |
? |
|
Suction Rotolock valve connection: |
? |
1 3/4" |
? |
|
Discharge Rotolock valve connection: |
? |
1 1/4" |
? |
|
Suction connection with supplied sleeve: |
? |
7/8" |
? |
|
Discharge connection with supplied sleeve: |
? |
3/4" |
? |
Approvals
|
? |
? |
? |
|
CCC |
+ |
? |
|
CE |
+ |
? |
|
UL |
+ |
? |
?
