Brand name:Danfoss
Model number:MTZ72-4VM
Price:Inquiry for discount
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Download PDF
Payment methods:Consulting support, including your preferred payment methods.
Quick Quote

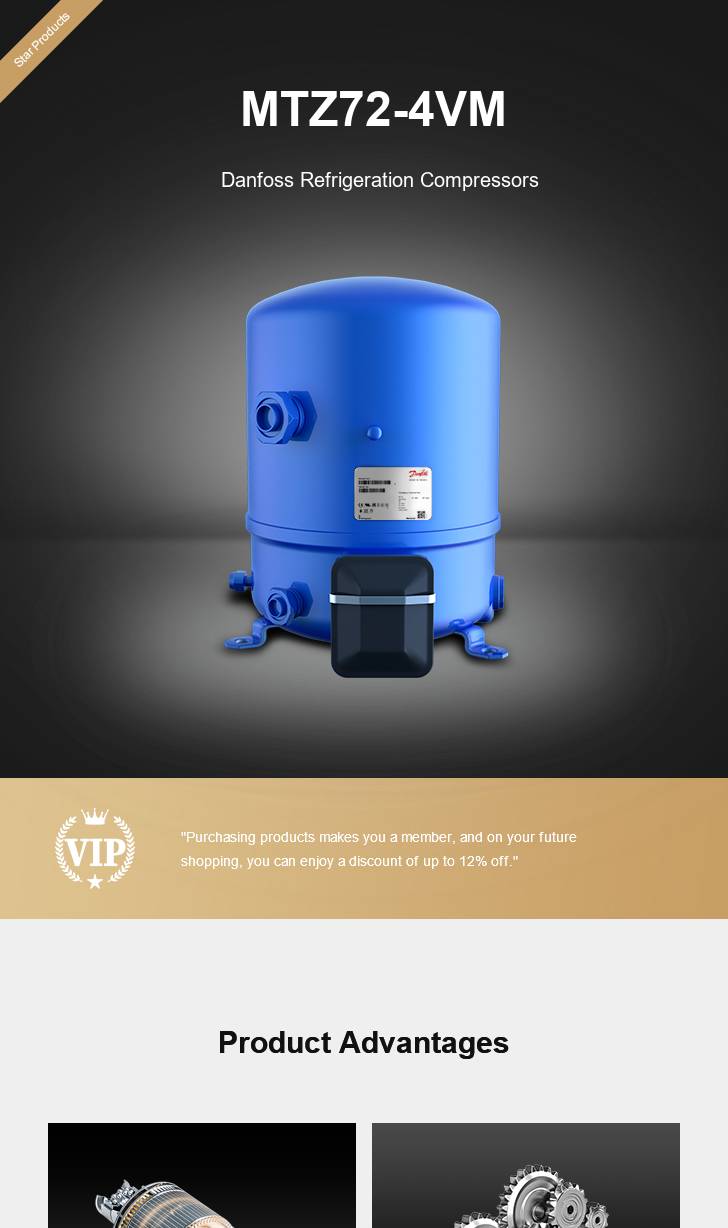

Danfoss Compressor MTZ72-4VM
Product details
Gross weight
44.5 kg
Net weight
42 kg
EAN
5702428866941
?
Approval standard
CEUL
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Colour
Blue
Compressor power supply [V/Ph/Hz]
400/3/50 460/3/60
Configuration code
Single
Connection type
Rotolock
Cylinder
2
Description
MTZ072-4
Diameter [mm]
288 mm
Discharge connection height [mm]
74 mm
Discharge connection mounting torque [Nm]
90 N-m
Discharge connection pipe size [in]
3/4 in
Discharge connection rotolock size [in]
1 1/4 in
Discharge connection size [in]
Discharge connection sleeve pipe size [in]
Drawing number
8502012g
Economizer
No
Factory HP [bar]
25 bar
Factory LP [bar]
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
Schrader
Generation code
B
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High side max pressure (Ps)
29.4 bar
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
0.6 L
High value of nominal voltage at 50Hz [V]
400 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
High value of voltage range at 60Hz [V]
506 V
IP protection class
IP55 (with cable gland)
Low side max pressure (Ps)
22.6 bar
Low Side TS Max
50 °C
Low Side TS Min
Low Side Volume
16.5 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
Low value of voltage range at 50Hz [V]
340 V
Low value of voltage range at 60Hz [V]
414 V
LRA
80 A
MCC
17.5 A
Model number
MTZ72HN4AVE
Motor protection
Internal overload protector
Mounting torque [Nm]
Nominal cooling capacity at 50Hz
9.2 kW
Nominal cooling capacity at 60Hz
11.9 kW
Number of starts per hour [Max]
12
Oil charge [L]
1.8 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
175PZ
Packaging height [mm]
550 mm
Packaging length [mm]
1150 mm
Packaging weight [Kg]
263 kg
Packaging width [mm]
800 mm
Packing format
Industrial pack
Packing quantity
6
Phase
3
Power connections
Spade
Refrigerant
R134aR404AR407AR407CR407FR448AR449AR452AR513A
Refrigerant charge [kg] [Max]
5 kg
Relief valve
30 bar/8 bar
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
Segment usage
Air conditioningRefrigeration MT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
265 mm
Suction connection mounting torque [Nm]
110 N-m
Suction connection pipe size [in]
7/8 in
Suction connection rotolock size [in]
1 3/4 in
Suction connection size [in]
Suction connection sleeve pipe size [in]
Swept volume [cm3]
120.94 cm3
Technology
Reciprocating
Test dif [bar] [Max]
30 bar
Test HP [bar] [Max]
Test LP [bar] [Max]
Torque earth [Nm]
3 N-m
Torque power [Nm]
Total height [mm]
413 mm
Type
MTZ
Type designation
Compressor
Winding resistance for three-phase compressors with identical windings [Ohm]
1.94 Ohm
