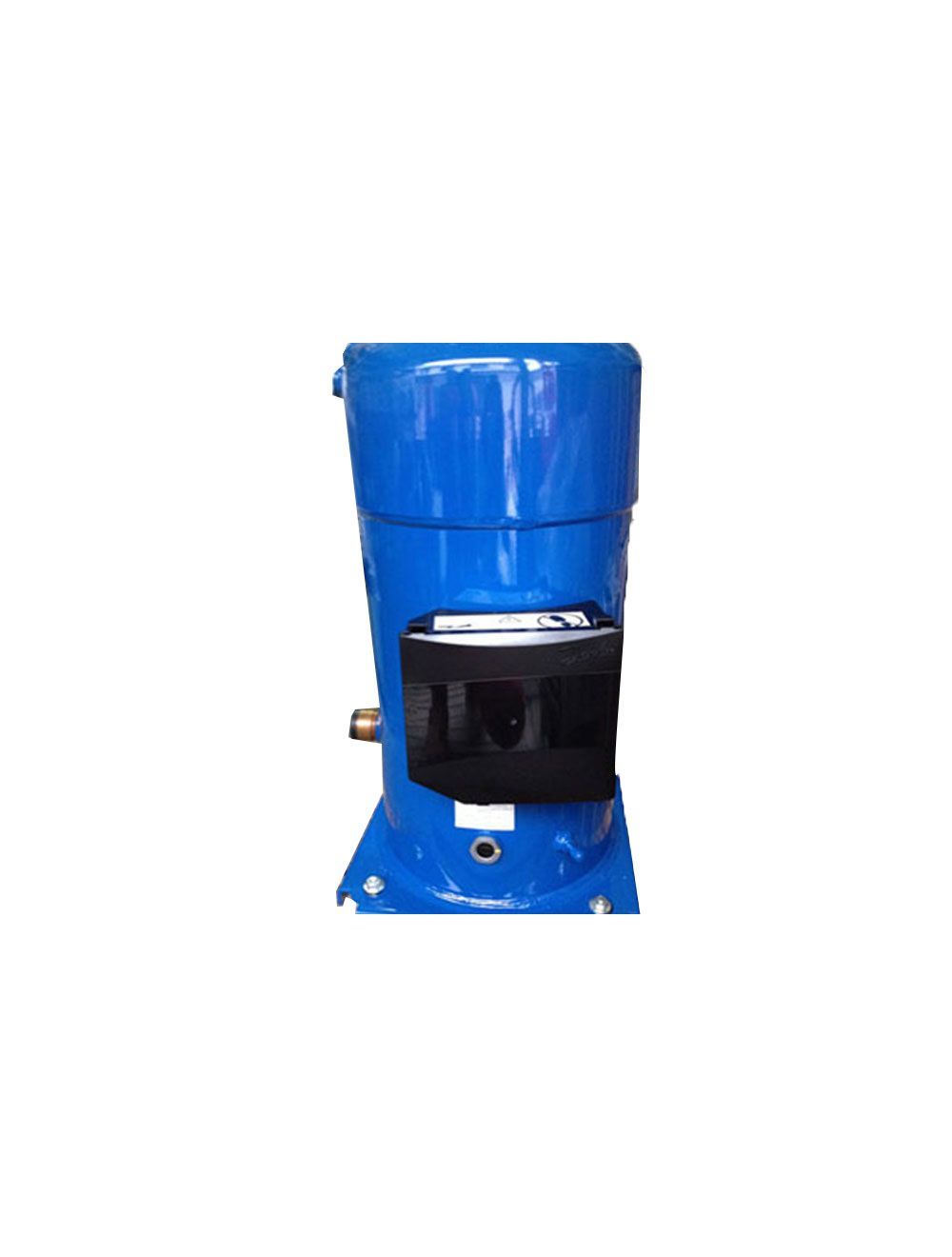

Danfoss Compressor SH380A4ABA
Basic Infomation
Brand name:Danfoss
Model number:SH380A4ABA
Product Condition:Factory New / New Surplus
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Download PDF
Payment methods:
Consulting support, including your preferred payment methods.
Danfoss Compressor SH380A4ABA
gross weight: 166.17 Kg
EAN: 5702428585323
maximum pressure on the low pressure side (Ps): 31.1 bar
refrigerants: R410A
generation code: B
viscosity [cP]: 32 cP
number of starts per hour [Max]: 12
maximum pressure on the high pressure side (Ps): 48.7 bar
packaging weight: 165 kg
MCC: 79 A.
sight glass mounting: screw-in
filling [Max]: 14.5 kg
oil filling: 6.7 L.
low side volume: 30.3 L
low TS side max: 52 °C
low TS side min .: -35 °C
low rated voltage at 50 Hz: 380 V
low rated voltage at 60 Hz: 460 V
low voltage range at 50 Hz: 342 V
low voltage range at 60 Hz: 414 V
nominal cooling capacity, 50 Hz: 80.6 kW
nominal cooling capacity, 60 Hz: 109.6 kW
nominal cooling capacity, 60 kBTU / h: 374.06 KBtu / h
nominal heat output, 50 Hz: 80.4 kW
standard based on which approvals are issued: CE, UL
reference oil: 160SZ
displacement: 345 cm3
low pressure manometer connection: Schrader
high pressure gauge connection: Not applicable
differential pressure test [Max]: 37 bar
low pressure test [Max]: 34.3 bar
high pressure test [Max]: 48.7 bar
rotor starting current: 320 A
rotation speed at 50 Hz: 2900 rpm
rotation speed at 60 Hz: 3500 rpm
performance control: constant speed
winding resistance of 3-phase compressors with identical windings: 0.418 Ohm
RLA: 56.4 A
suction connection size: 1 5/8 inch
discharge connection size: 1 1/8 inch
suction connection pipe size: 1 5/8 inch
discharge connection pipe size: 1 1/8 inch
oil drain: 1/4'' screw connection
IP protection class: IP54 (with cable gland)
connection type: soldered
oil leveling: Rotolock 2-1/4''
high side volume 4 L
high TS max side: 150 °C
high TS side min .: -35 °C
high rated voltage at 50 Hz: 400 V
high rated voltage at 60 Hz: 460 V
high voltage range at 50 Hz: 440 V
high voltage range at 60 Hz: 506 V
total height: 755 mm
suction connection height: 331 mm
discharge connection height: 697 mm
protection (against reverse rotation): Electronic module
compressor power supply: 400V/~3/50Hz? ?460V/~3/60Hz
safety valve: Yes
standard fitting: ODF
power supply connection screws: 4.8 mm screw
