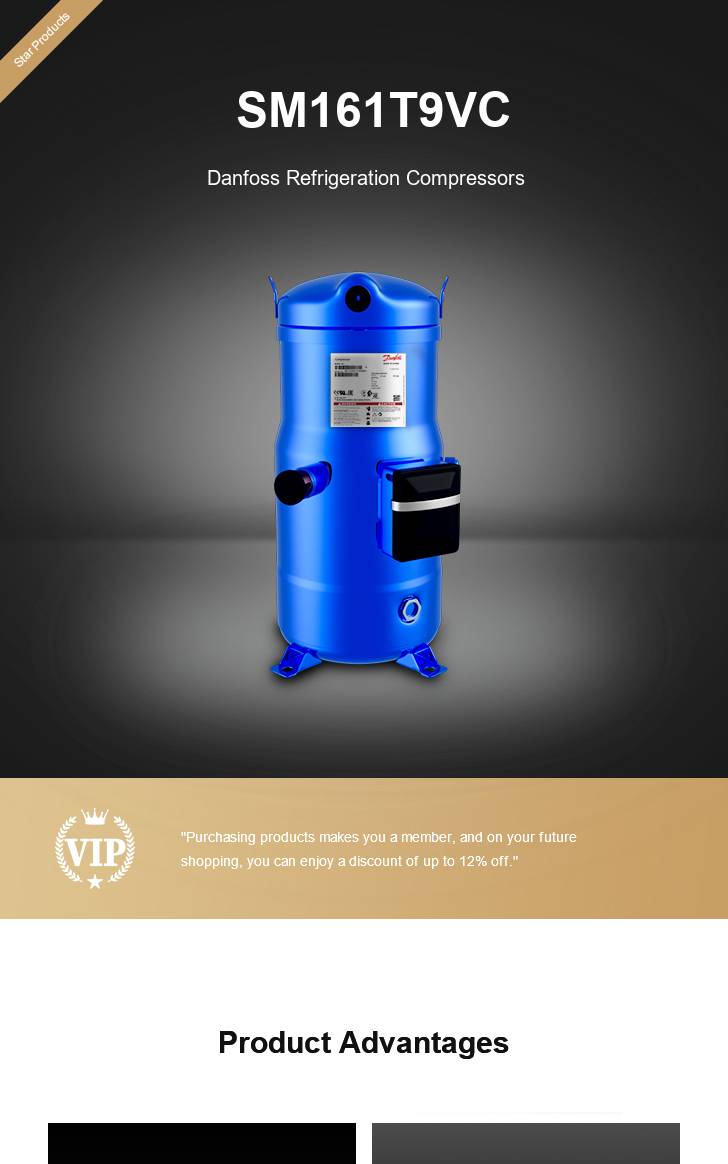

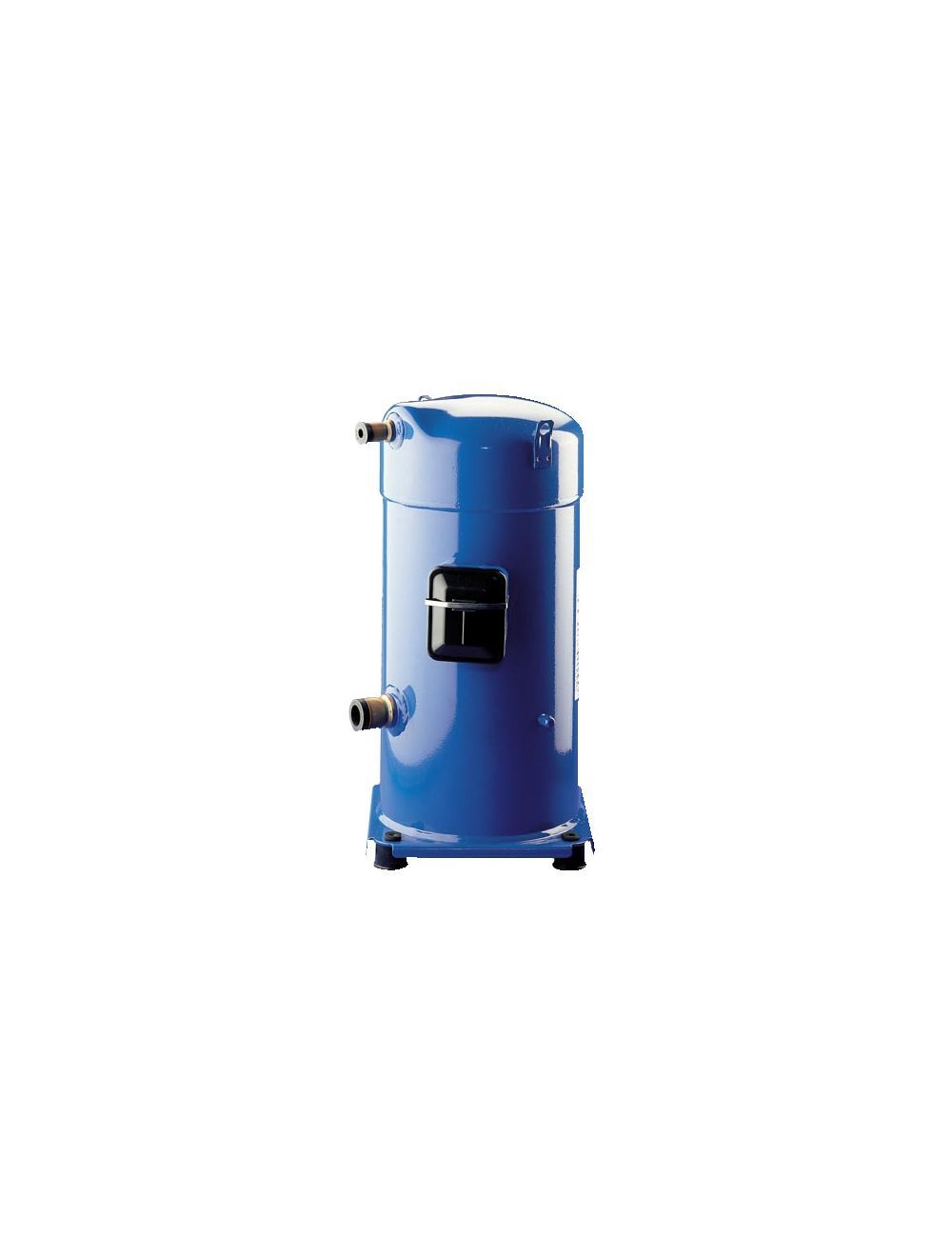

Brand name:Danfoss
Model number:SM161T9VC
Product Condition:Factory New / New Surplus
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Download PDF
Payment methods:Consulting support, including your preferred payment methods.
Quick Quote
Approval standard CE UL Brand technique Scroll compressor Capacity control Fixed speed Colour Blue Compressor power supply [V/Ph/Hz] 380/3/60 Configuration code Single Connection type Brazed Description SM161-9 Diameter [mm] 266 mm Discharge connection height [mm] 556 mm Discharge connection pipe size [in] 7/8 in Discharge connection size [in] 7/8 in Drawing number 8551106b Economizer No Factory HP [bar] 33 bar Factory LP [bar] 25 bar Fitting standard ODF Frequency [Hz] 60 Gauge port HP None Gauge port LP Schrader Generation code C Glass mounting Threaded Glass torque [Nm] 50 Nm GP LP torque [Nm] 15 Nm High side max pressure (Ps) 30.2 bar High Side TS Max 150 °C High Side TS Min -35 °C High Side Volume 1.6 L High value of nominal voltage at 50Hz [V] 0 V High value of nominal voltage at 60Hz [V] 380 V High value of voltage range at 50Hz [V] 0 V High value of voltage range at 60Hz [V] 418 V IP protection class IP54 (with cable gland) Low side max pressure (Ps) 25 bar Low Side TS Max 63 °C Low Side TS Min -35 °C Low Side Volume 14.7 L Low value of nominal voltage at 50Hz [V] 0 V Low value of nominal voltage at 60Hz [V] 380 V Low value of voltage range at 50Hz [V] 0 V Low value of voltage range at 60Hz [V] 342 V LRA 155 A Maximum Operating Current [MOC] 38 A MCC 38 A Motor protection Internal overload protector Mounting torque [Nm] 21 Nm Nominal cooling capacity 60 kBTU/h 162.8 kBtu/h Nominal cooling capacity at 60Hz 47.7 kW Number of starts per hour [Max] 12 Oil charge [L] 3.6 L Oil equalization 3/8'' flare SAE Oil equalization torque [Nm] 48 Nm Oil reference 160P Oil type Mineral Phase 3 Power connections Screw 4.8 mm Refrigerant R22 Refrigerant charge [kg] [Max] 12.5 kg Relief valve None RLA 27.1 A Rotational speed at 50Hz [rpm] 0 rpm Rotational speed at 60Hz [rpm] 3500 rpm Segment usage Air conditioning Shipped instructions Installation instructions Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers Shipped oil Initial oil charge Suction connection height [mm] 180 mm Suction connection pipe size [in] 1 3/8 in Suction connection size [in] 1 3/8 in Swept volume [cm3] 216.6 cm3 Technology Scroll Test dif [bar] [Max] 24 bar Test HP [bar] [Max] 32 bar Test LP [bar] [Max] 25 bar Torque earth [Nm] 2 Nm Torque power [Nm] 3 Nm Total height [mm] 591 mm Type SM Type designation Compressor Viscosity [cP] 32 cP Winding resistance for three-phase compressors with identical windings [Ohm] 0.75 Ohm
