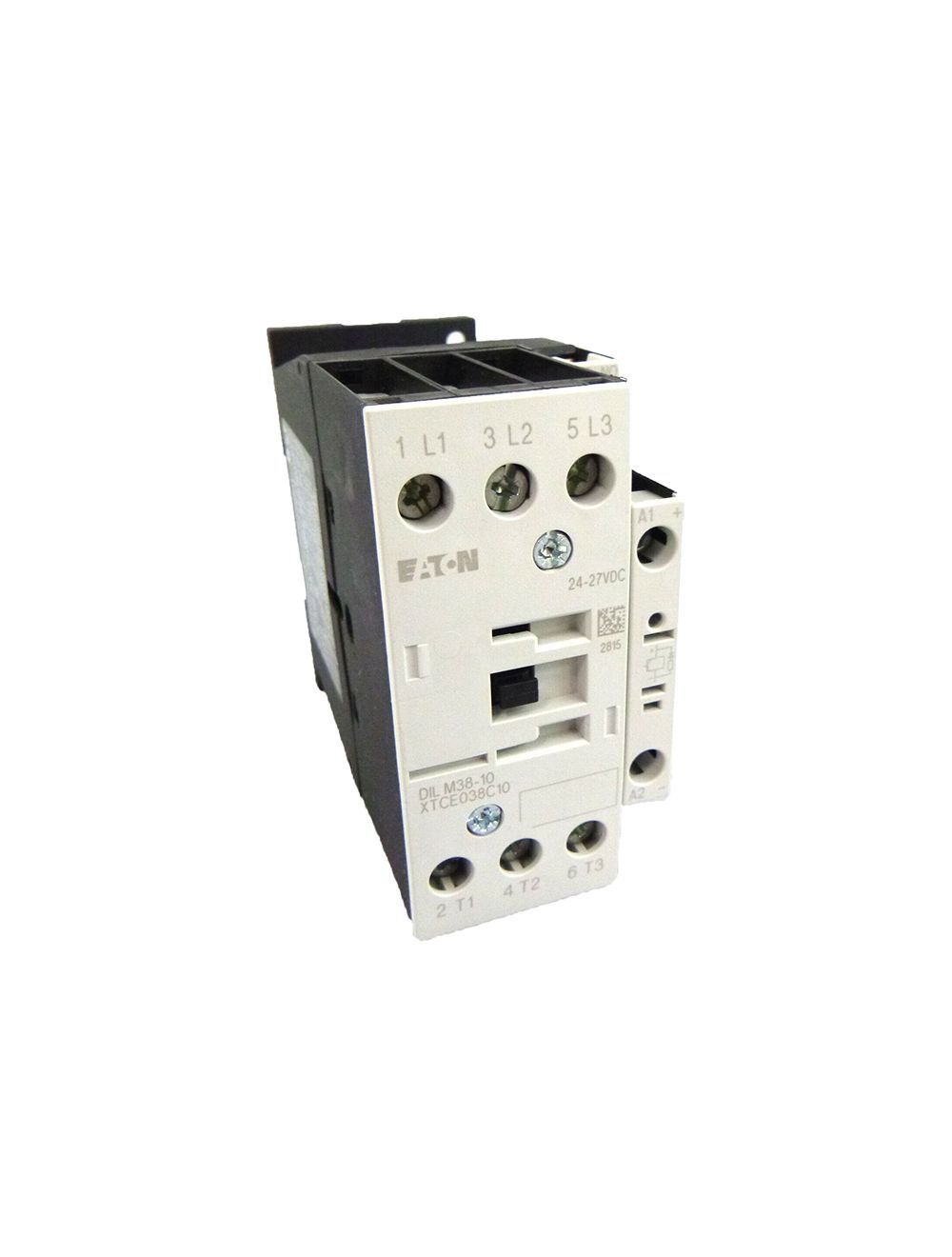

Eaton Contactor DILM38-10(42V50HZ,48V60HZ)

The Eaton Contactor is high quality!
Modular version:
No
Number of auxiliary contacts as normally closed contact:
0
Number of auxiliary contacts as normally open contact:
1
Number of main contacts as normally open contact:
3
Number of normally closed contacts as main contact:
0
Rated control supply voltage Us at AC 50HZ:
42 - 42V
Rated control supply voltage Us at AC 60HZ:
48 - 48V
Rated operation current Ie at AC-1, 400 V:
45A
Rated operation current Ie at AC-3, 400 V:
38A
Rated operation current Ie at AC-4, 400 V:
15A
Rated operation power at AC-3, 400 V:
18.5kW
Rated operation power at AC-4, 400 V:
7kW
Rated operation power NEMA:
14.9kW
Type of electrical connection of main circuit:
Screw connection
Voltage type for actuating:
AC
