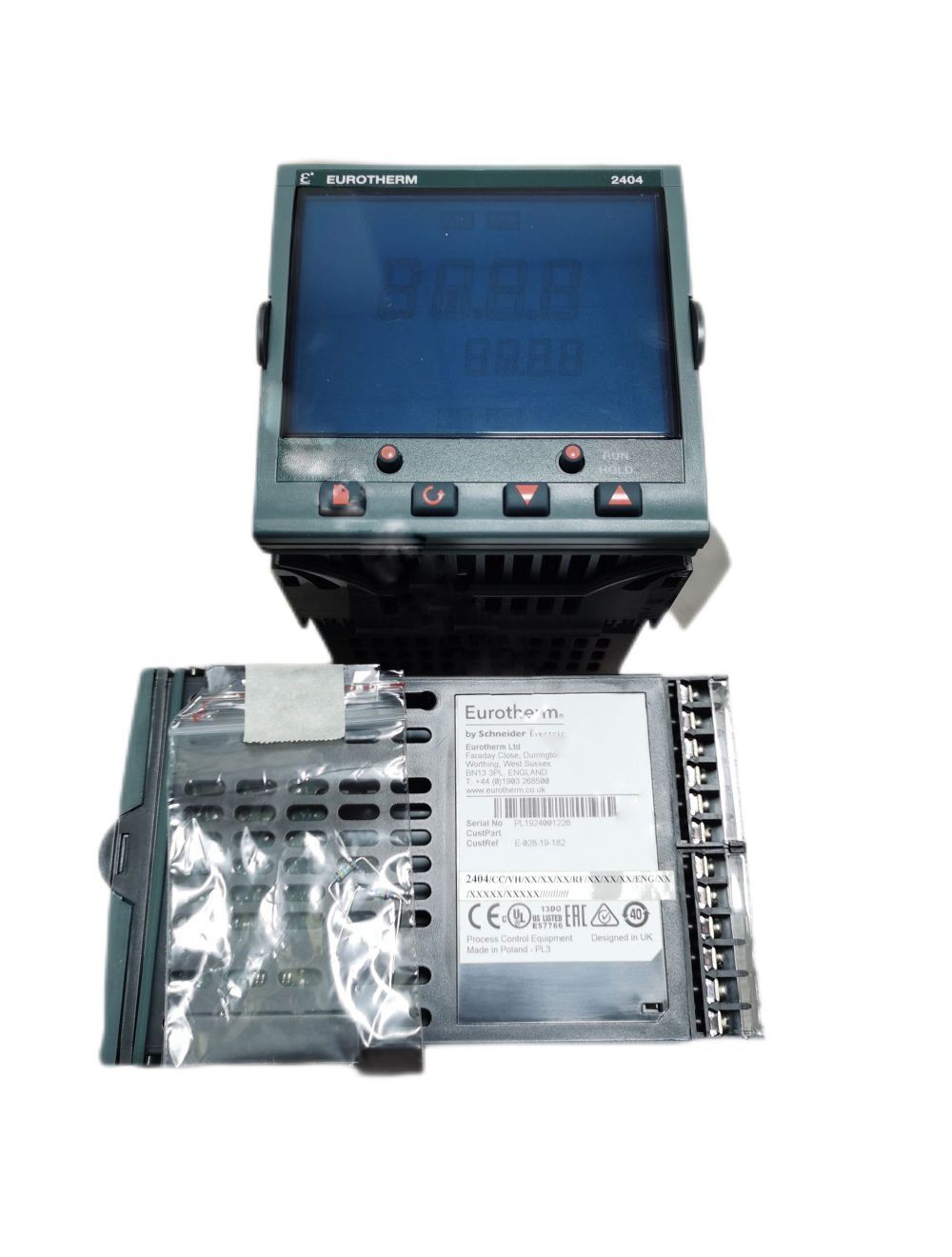

Eurotherm Temperature Controller 2404-CC-VH-R2-R2-R4-FL-HF

Ideal for: Plastics and Heat Treatment - Single and multi - zone furnaces Kilns Environmental chambers Simple ratio Humidity Chemical applications Pharmaceutical applications Glass furances and lehrs The 2040 is a versatile, high stabiliti temperature or process controller, with self and adaptive tuning, in 1/4 DIN and 1/8DIN sizes. It comes with a standard 8 segment setpoint programmer, with options for one, four or twenty programs of 16 segments each. It has a modular hardware contrunction which accommodates a wide range of plug- in modules. Two digital inputs and an optional alarm relay are included as part of the fixed hardware build. The hardware is configurable for heating, cooling, alarms and other functions. A transmitter power supply option is available, as is a 5 or 20V transducer supply option. The 2404 is fully configurable on-site. The 16 segment programmer can have up to 8 programmable outputs which can be set in each segment to trigger external events. The two digital inputs can be used to run, hold and reset the program. Parallel operation of several programmers can be performed with synchronisation chosen at the end of any desired segments. Precise control An advanced PID control algorithm gives stable 'Straight-line' control of the process. A one-shot tuner is provided to set up the initial PID values and to calculate the overshot inhibition parameters. In addition an adaptive tuner will handle processes with continually changing characteristics. On electrically heated loads, power feedback is used to stabilise the output power and hence the controlled temperature against supply voltage fluctuations. Dedicated cooling algorithms ensure optimum control of fan, water and oil cooled systems. Features: High stability control Up to twenty programs 16 segments Heating and cooling Customisable operation Heater current display Multiple alarms on a single output DC retransmission Digial communications Modbus RTU ProfibusDP network DeviceNet nerwork
