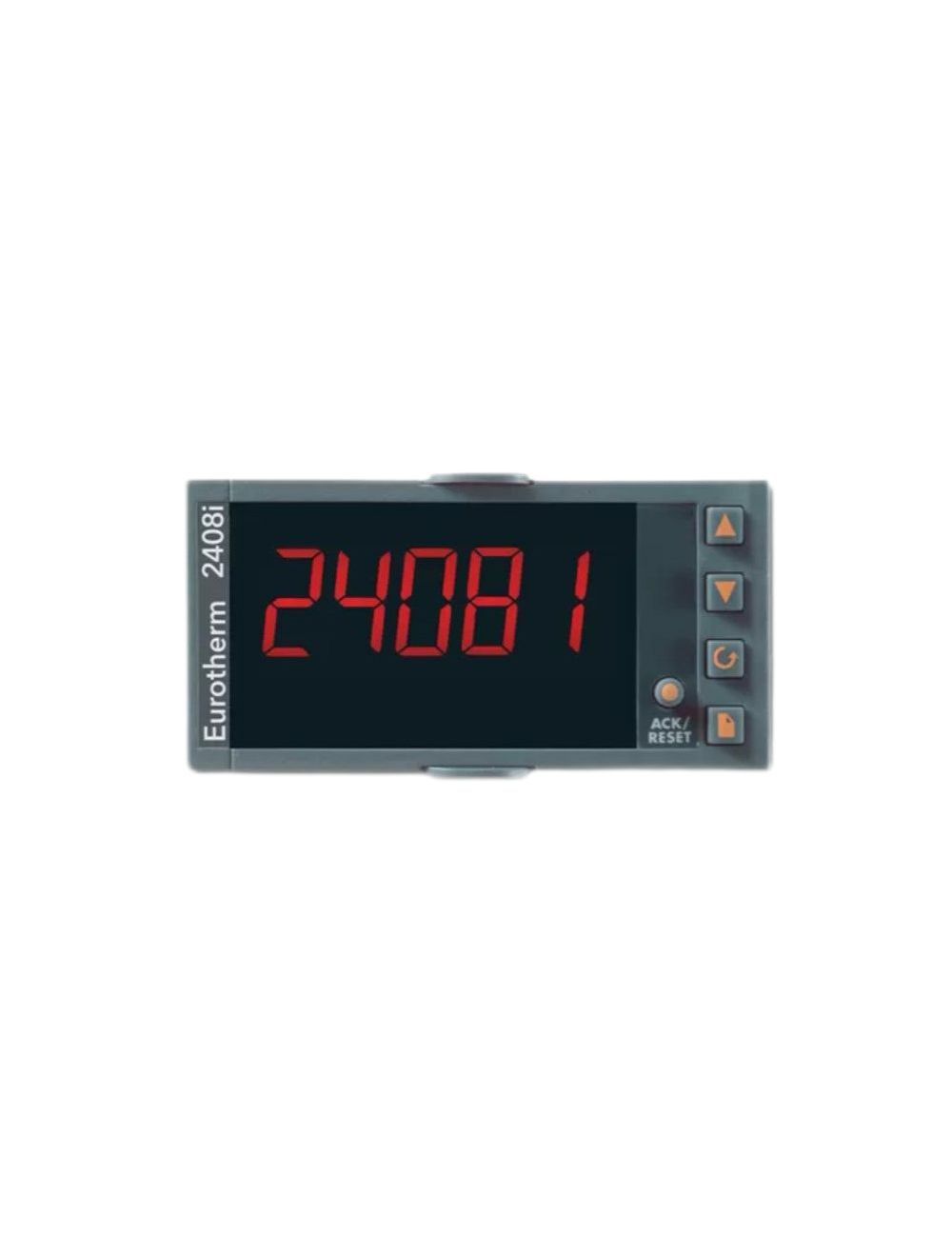

Eurotherm Temperature Controller 2408i- AL-GN-R4-R4-R4-RF-YE-M6-ENG

The 2408i provides you with accurate indication and alarming of temperature furnace limits, are implemented using relay outputs. Large 5 digit display providing excellent visibility Furnace over temperatures limits Extrusion melt pressure indication and alarming Fieldbus communications providing system integration Second process input provide additional alarming strategies Modular construction offering increased I/O flexibility A universal input allows seletions of nine internally stored types. Linear inpouts are scaled to the desired range. Other input linearizations may be downloaded at time of order or by using iTools. A fifteen point linearization can be used to provide an accurate indication of non-standard signals Its large 5 digit diplay, available in red or green, provides you with clear indicationof the process value. An optional second process input allows the average, difference, minmum or maximum of two values to be displayed and alarmed upon. Up to three I/O modules from a total selection of nine, including relay, logic, analog and transmitter PSU, can be fitted providing excellent flexibilty for a wide range of applications. System integration can be achieved using either conventional analog retransmission or with digital communications. 2408i supports the Modbus protol in both its serial and Ethernet formats as well as Devicenet and Profibus DP. Ideal for: Temperature & process indiaction Process protection Heat treatment - Furnace over temperature Plastics processing - Extrusion melt pressure Weighing platforms Feature: Universal input Strain gauge input Red and green display Process variable retransmission Serial Modbus comms Profibus DP Devicenet
