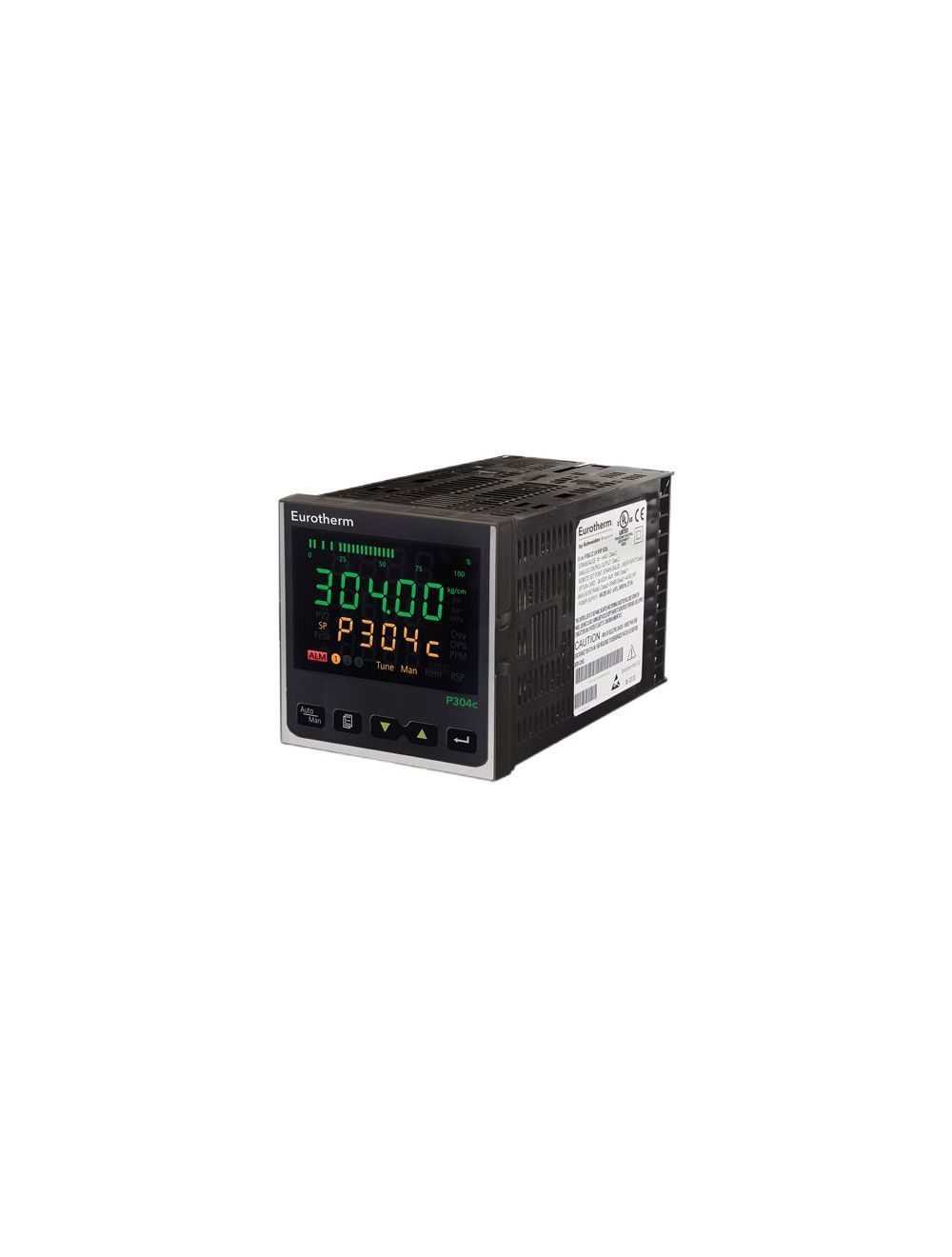

Eurotherm Temperature Controller P304c-CC-VH-XXX-SD4L

Description Specifications Both the piccolo P304i Melt Pressure indicator and P304c controller have a 50ms sample rate to give the fast to give the fast-acting control and alarlm functionality required in plastics industry. The P304c controller provides outstanding control performance in an affordable package for a wide varity of pressure sensors. Input/output flexibility A strain gauge or process linear input is standard with an optional strain gauge input for differential pressure control, or a universal input for remote setpoint. Up to two opto-isolated DC linear outputs are available for control or retransmission along with one standard logic input for alarm reset/acknowledge or zero calibraton of sensor. An additional four logic inputs may be selected for remote activation of functions like auto/manual mode selection and increase/decrease of power output. The display A custom, dual-line 5-digit display provides a complete view of the process while a horizontal bar graph gives clear visual indication of the process input. The status of alarm, outputs active setpoint and engineering units are represented with clear beacons on the front of the unit. Configuration The P304 is fully software configurable using iTools PC configuration and parameter monitoring. iTools provides the ability to edit, store and 'clone' complete controller configurations as well as data logging and process monitoring capability. Features: Easy to integrate and use in new and lagacy applications Fast-acting alarms to protect against overpressure Responsive, precision PID control with overshoot inhibit Easy,effective auto-tune Universal + strain gauage inputs Second input for differential pressure indication/control Analogue restransmission Easy and flexible configuration via PC software or front panel Modbus RTU digital communications High visibility three colour LED display Wipedown, customizable front fascia High reliability and quality Three year warrenty
