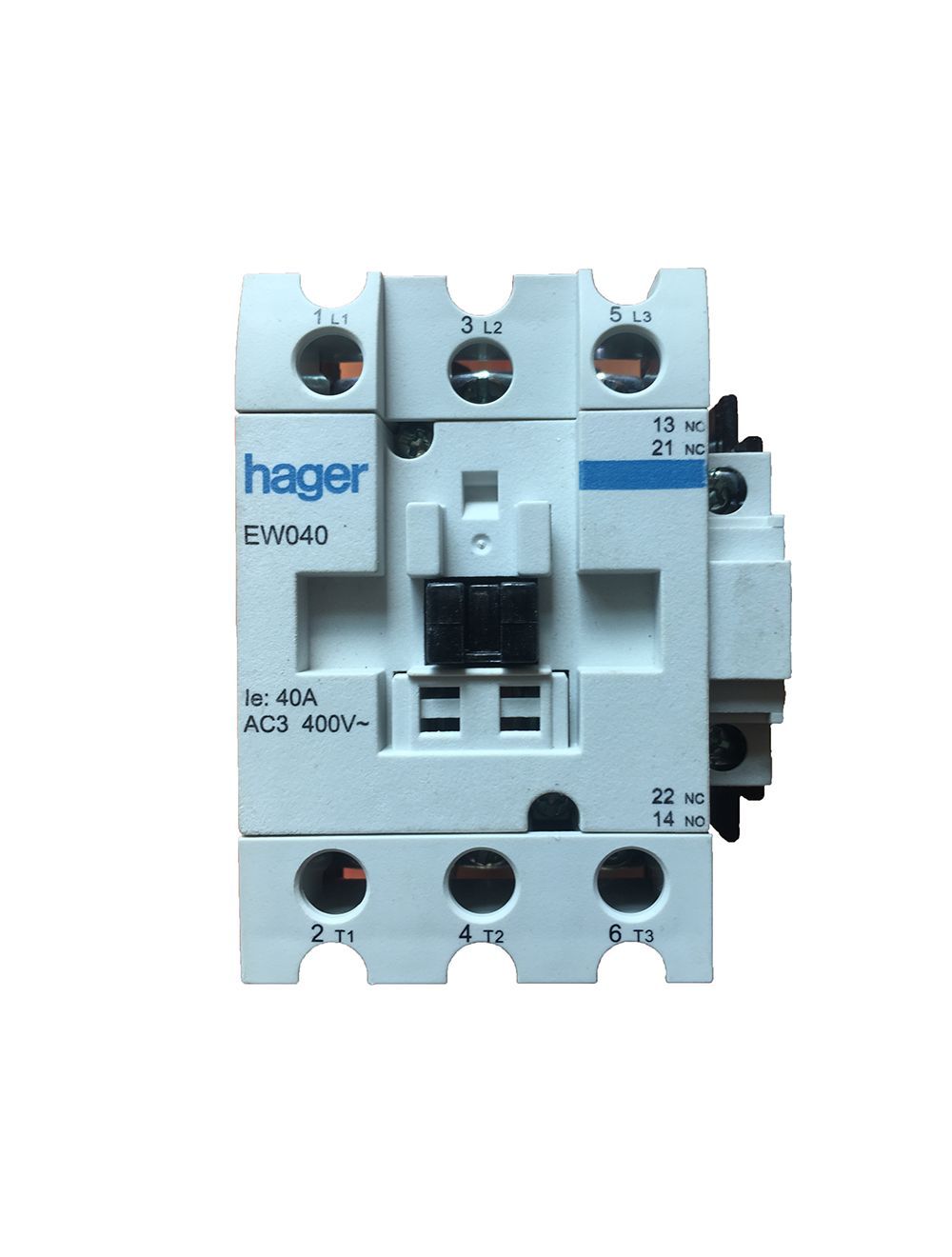

Hager Contactor EW040_L

The Hager Contactor is high quality!
Architecture
Type of pole 3 P
Compatibility
Compatible with DIN rail mounting yes
Main electrical features
Type of supply voltage AC
Rated operational voltage Ue 660 V
Voltage
Rated insulation voltage 1000 V
Command voltage AC 400 V
Electric current
Acceptable current rating with AC1 60 A
Rated operational current in AC3 40 A
Thermal rated current outside of housings 60 A
Powerv
Contact rating with 400 V in AC3 20 kW
Endurance
Electric endurance in number of cycles 500000
Number of mechanical operations 5000000
Measurement
Relative humidity (without condensation) 45 ?85 %
Dimensions
Depth of installed product 112 mm
Height of installed product 99 mm
Width of installed product 69 mm
Connection
Type of connection with screw
Connection cross section of access and exit with
screws, for flexible conductor
6/16 mm?
Connection cross-section of input and output with
screws, for massive conductors
6/16 mm?
Equipment
Number of auxiliary contacts as normally closed
contact
1
Number of auxiliary contacts as normally open
contact
1
Quantity of NO contacts 3
Use cases
Category of use AC3
Standards
Standard text IEC 60 947-4-1
European directive WEEE not concerned
Use conditions
Altitude 2000 m
Storage temperature -40 to 80 degrees Celsius
Identification
Device family EW
