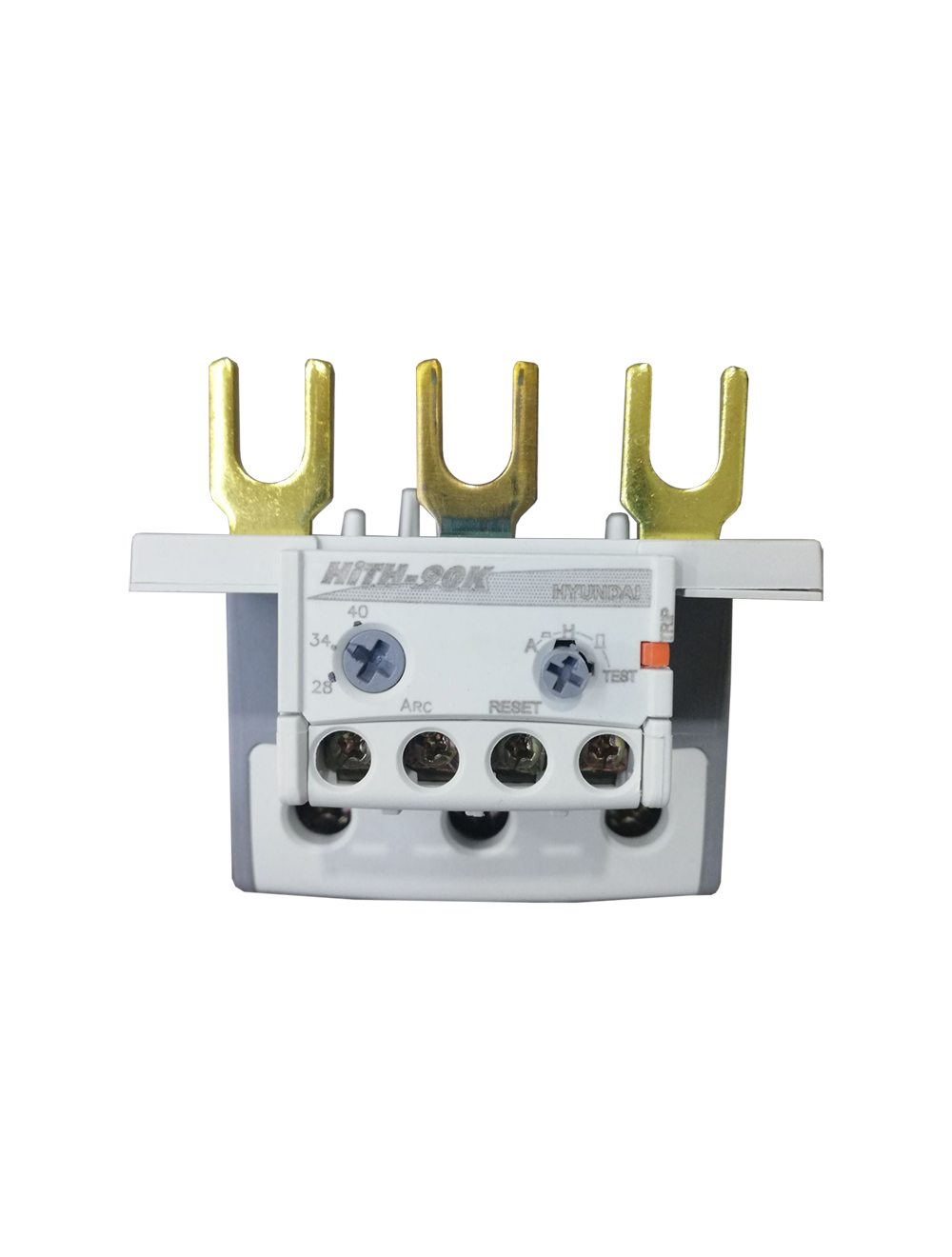

HYUNDAI Contactor HiTH90K

The HYUNDAI Contactor is high quality!
The HiTH series thermal overload relay compensates the ambient temperature
automatically. The compensation range is between -25 and +55
The HiTH series has the phase unbalance protection device, which increases the
reliability of the motor protection.
These relays are provided with built-in free tripping mechanism, which can be trip
regardless of the position of Reset Button position.
These relays have 1NO and 1NC aux. contacts with galvanic isolation.
HiTH 130 800 are Current Transformer(CT) type relays. HiTH 800 is able to
transmit Max. 800 ampere.
Protection cover for the main and control terminal meet IP 20.(HiTH 22 40 50 90)
The HiTH series is pin type, so it can be connected to the
magnetic contactor directly. (HiTH 22 40 50 90)
Both screw and 35mm Din rail mounting are available through the separate
mounting units.
