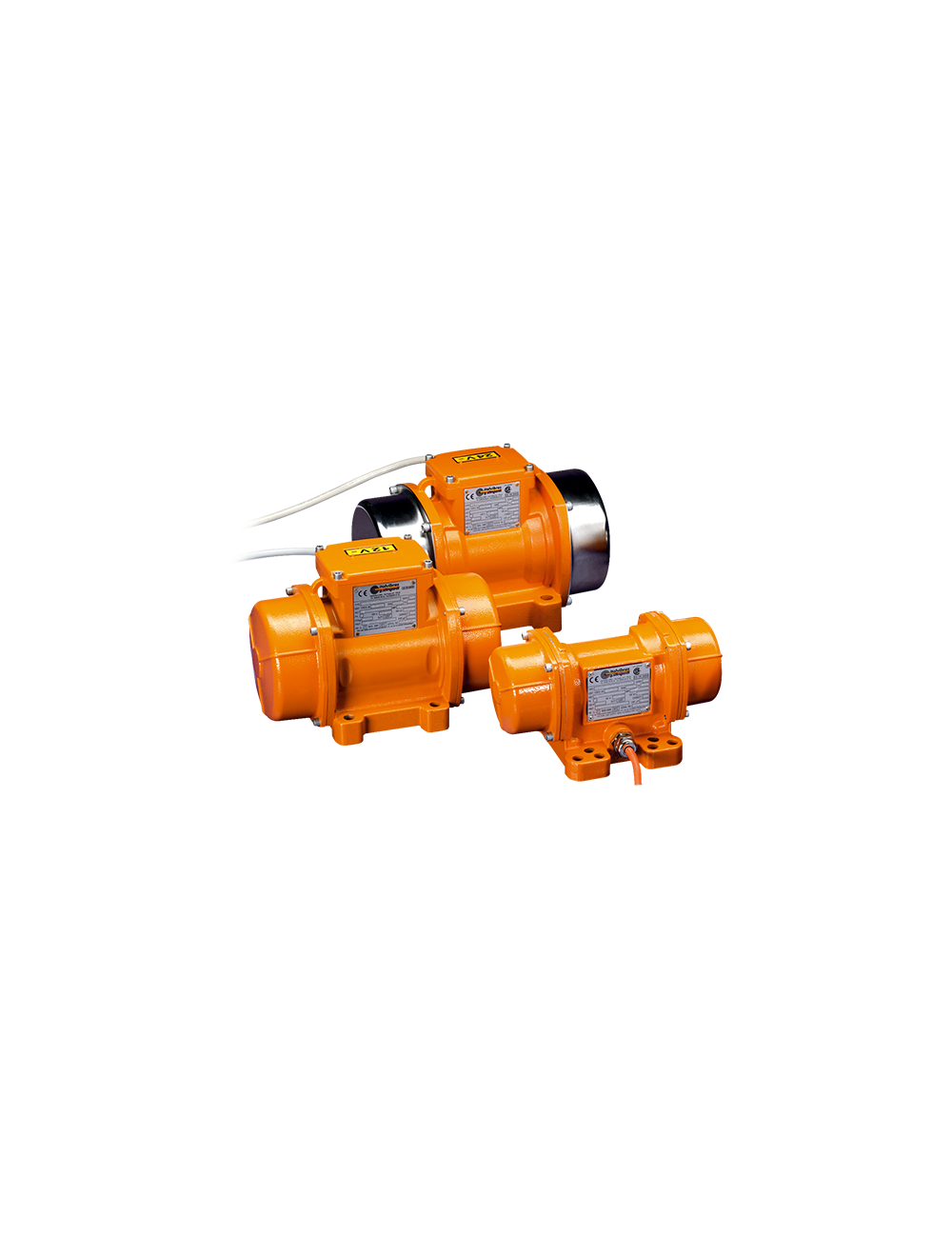

Italvibras Electric Motor MVCC 3/200-MF

Power supply In direct current at 12 or 24V. Conformity with Standards and Regulations Electromagnetic Compatibility Directive 2014/30/UE; EN 61000-6-2, EN 61000-6-4, EN 13309, EN 60034-1. Functioning Continuous (S1) or intermittent duty at maximum declared centrifugal force and electric power. Centrifugal force Range extended up to 1520 kgf. (14,9 kN), with centrifugal force adjustable by varyiing weights position. Mechanical protection IP 66 according to IEC/EN 60529. Protection against mechanical impacts IK 08 according to IEC/EN 62262. Ambient temperature From -20°C to +40°C. Fixing of the vibrator In all positions and therefore without restriction. Lubrication Sealed ball bearings, lubricated “for life”. Terminal box On MF models it’s positioned underneath the vibrator, on the same side as the fixing base. Electric motor For models 3/100 and 3/200, but in extension to the larger sizes, asynchronous three-phase type with vacuum insulated winding supplied in direct current through an electronic card included in the vibrator. Casing In high-tensile aluminium alloy.
