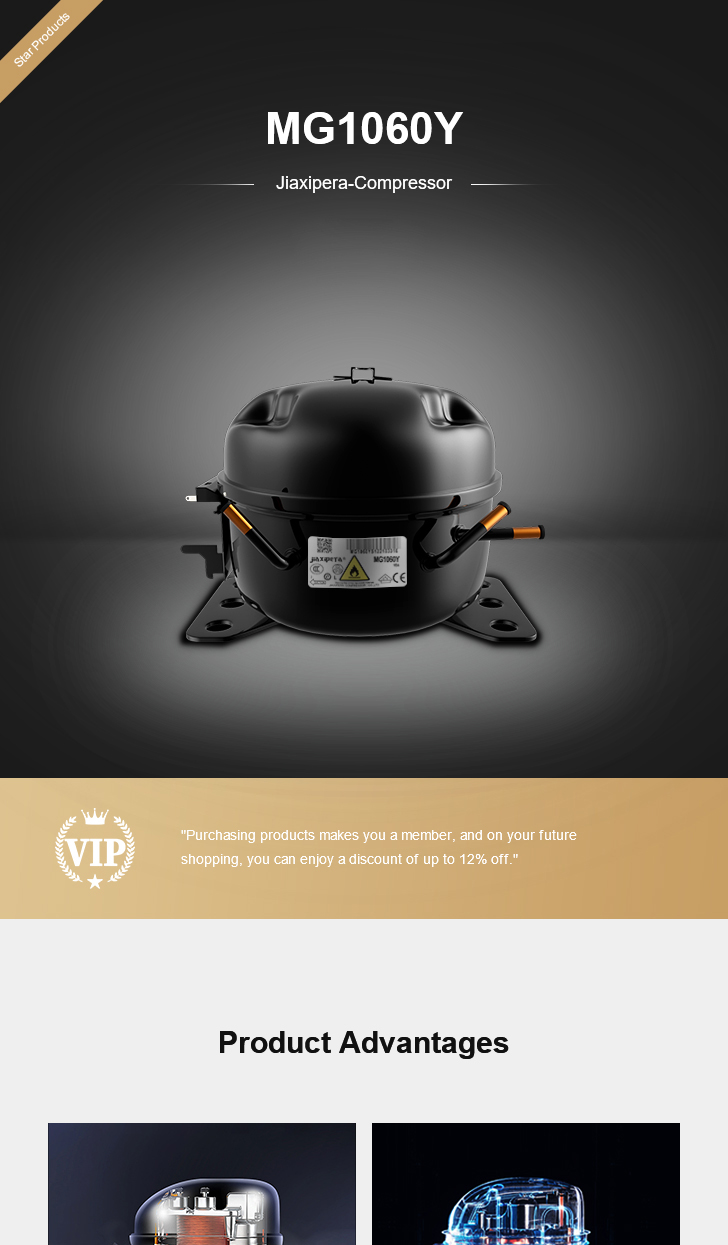

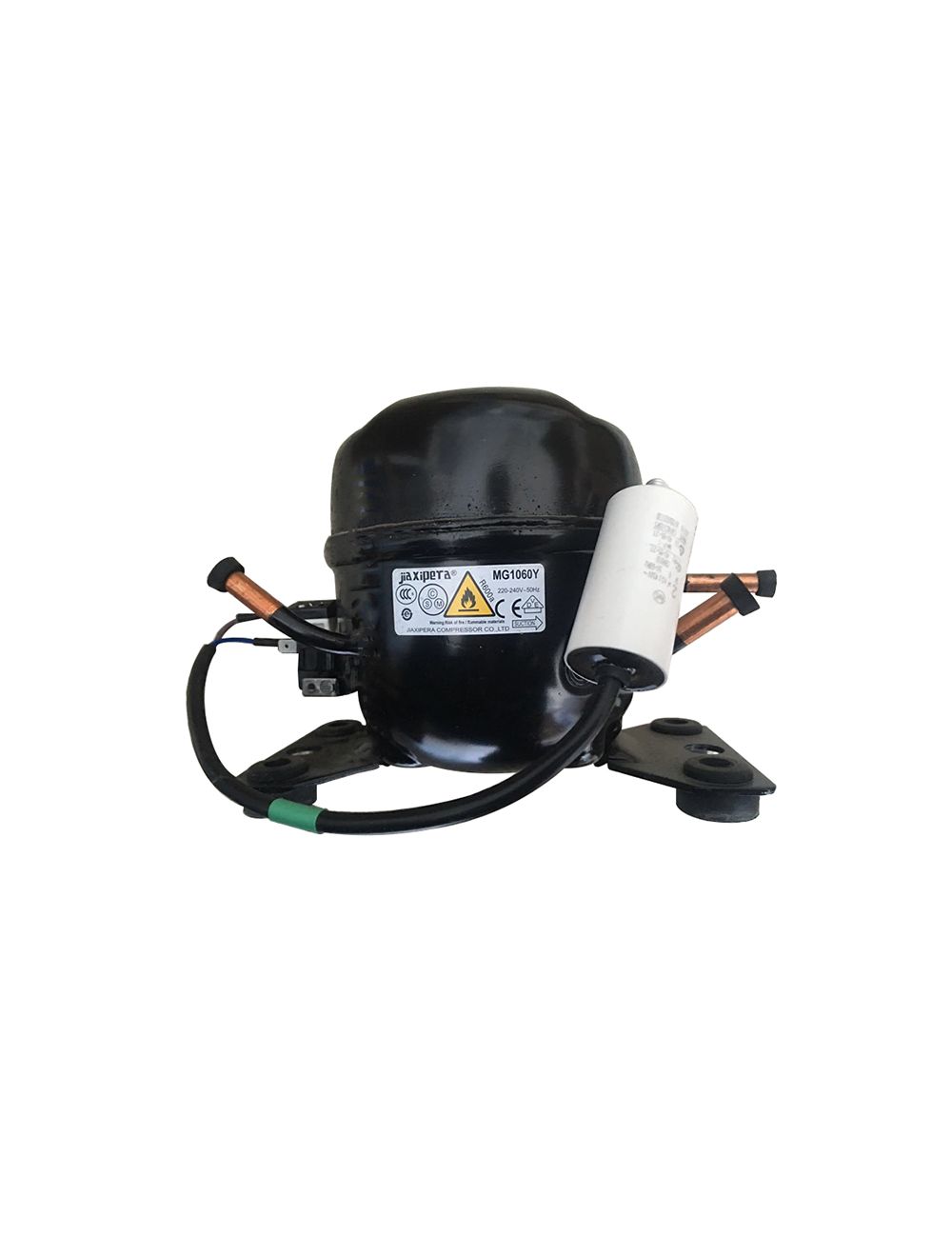

jiaxipera Compressor MG1060Y
Basic Infomation
Brand name:jiaxipera
Model number:MG1060Y
Product Condition:Factory New / New Surplus
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Download PDF
Payment methods:
Consulting support, including your preferred payment methods.

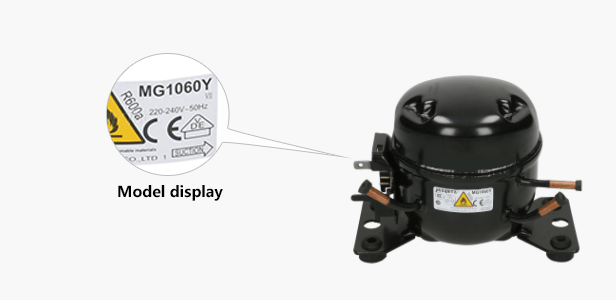

Product Display
|
Product Description |
Parameter |
||
|
Brand: |
Jiaxipera |
Displacement: |
4.1 CC |
|
Refrigerant: |
R410a |
Cooling Capacity: |
239 BTU/Hr |
|
Model: |
MG1060Y |
Cooling Capacity: |
70 W |
|
Origin: |
China |
COP: |
1.32 (ASHRAE W/W) |
|
Specifications: |
Brand new |
V/F(Hz): |
220-240AC/50 |
|
Type: |
Refrigeration compressor |
|
|
|
Application range: |
Refrigeration parts |
|
|
|
Material: |
Stainless steel |
|
|

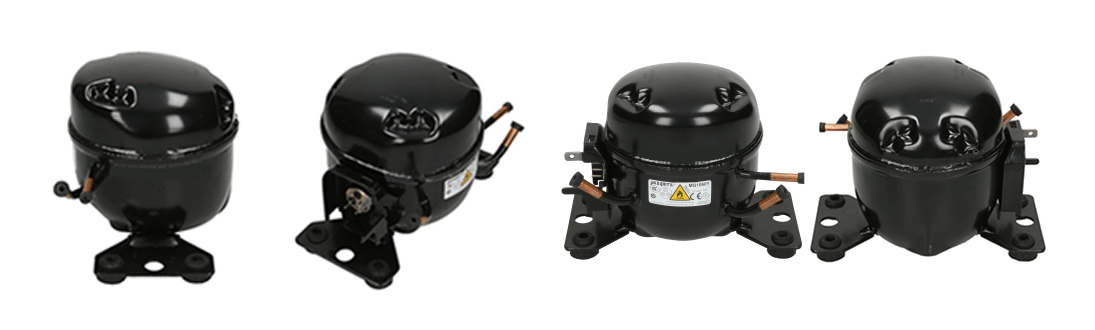

Product Media

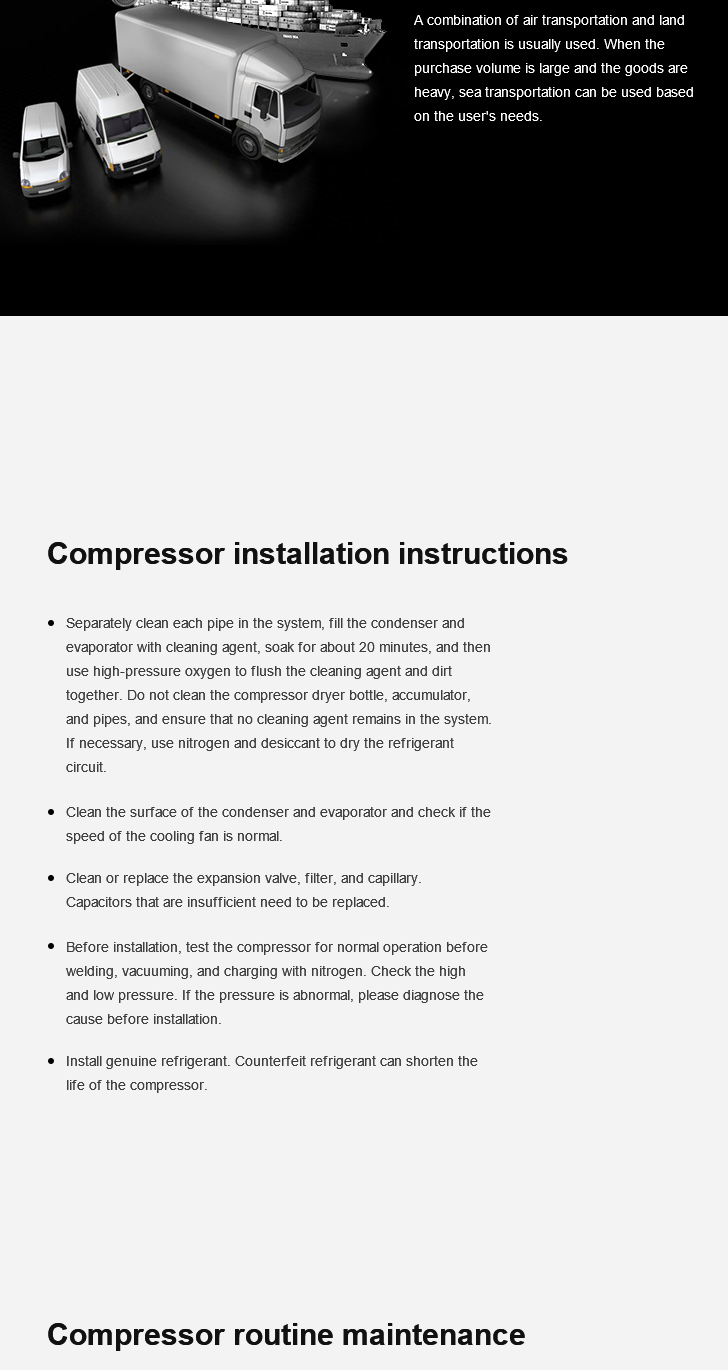

Installation Process
1. Check whether the refrigerating oil of the original compressor is too dirty. If the oil is too dirty, the system must be cleaned with nitrogen and the dry filter must be replaced.
2. Check whether the contacts of the compressor operation control AC contactor are stuck or have poor contact, causing the compressor to run out of phase. If the compressor is damaged in the coil winding, the AC contactor of the same model must be replaced.
3. Check and protect the circuit. The high and low pressure switch is in the closed state in the normal refrigerant compression state, the high pressure limit is less than or equal to 2.2Mpa, and the low pressure is more than or equal to 0.28Mpa.
4. Check whether the radiator is too dirty and must be cleaned.
5. Check whether the original equipment has refrigerant pressure, and repair it if the refrigerant is leaking.
1. Disconnect the power supply.
2. Disassemble the compressor and check its old compressor.
3. Nitrogen cleaning system, steps, disassemble the filter and blow in nitrogen from the inlet of the radiator, discharge from the outlet of the radiator, then blow in from the inlet of the filter, release from the return pipe of the compressor, and repeat cleaning several times.
4. Install the new compressor and weld the new filter.
5. Use nitrogen to pressure, 2.0Mpa pressure for leak detection for 30 minutes.
6. Circuit check and replace damaged parts, check power supply and control circuit.
7. Clean the radiator.
8. Vent the nitrogen and evacuate for 30 minutes.
9. Add the same type of refrigerant
10. Power-on debugging, check the compressor current and voltage, the normal pressure of the refrigerant, high pressure 1.7Mpa, low pressure 0.45Mpa, the refrigerant charge is expected to be 0.7kg/hp (10-30hp).

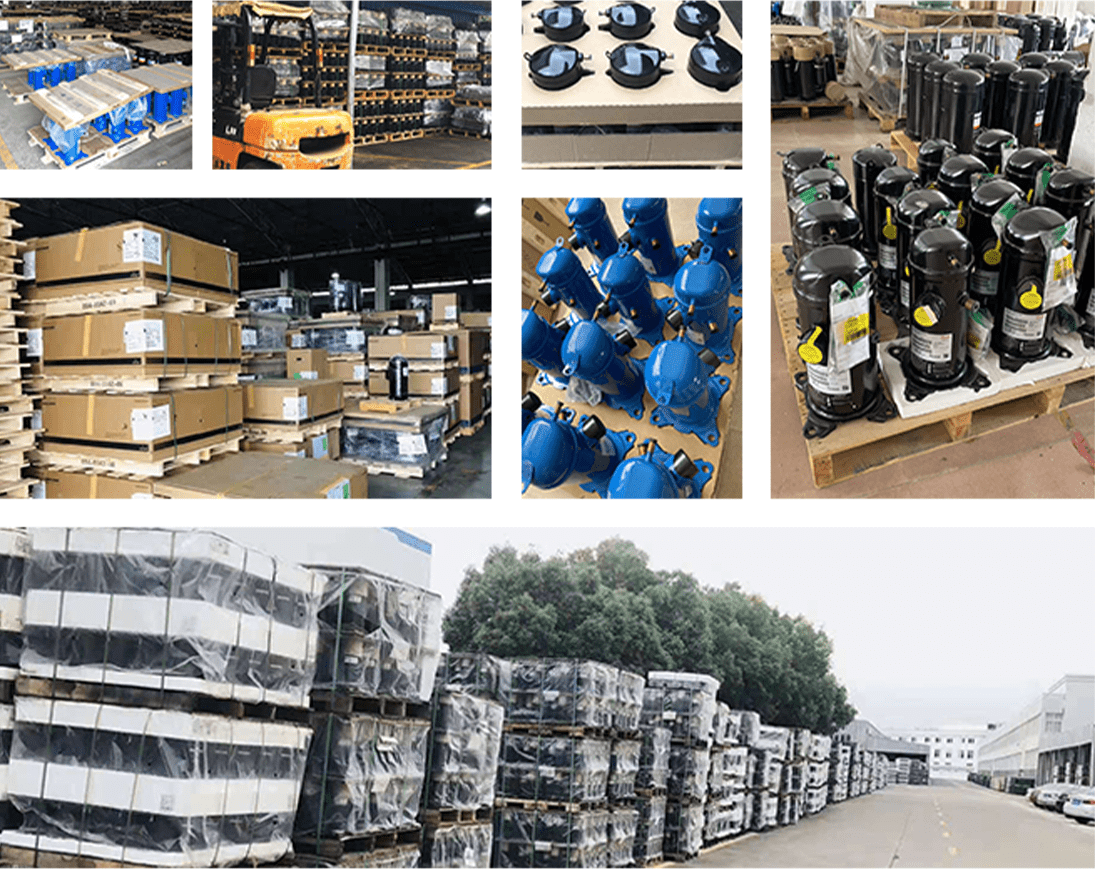

Packing & Shipping
Q: What means of transportation?
A: It can be shipped by air to the nearest international airport or by courier like DHL, TNT to your address; if it's not urgently required, they can also be shipped by sea to the nearest sea port.
Q: How long is your delivery time?
A: Usually, if it is in stock, it will take 5 to 10 days. Or, if there is no stock, it is 15-20 days, depending on the quantity.
Jasipola is the world's largest environmentally friendly, energy-saving and efficient refrigerator compressor. This is a refrigerator. The compressor national standard revision unit is a national high-tech enterprise. The company has a nationally recognized enterprise technology center, two overseas technology marketing centers, three manufacturing bases and two subsidiaries. The existing assets are more than 4 billion yuan, 4,000 employees, and the annual output of compressors exceeds 28 million. Stand at the forefront of the global industry.
Picking a Compressor? Here’s What to Know
Please confirm the compressor is in stock and verify its core specifications before purchasing. We prioritize matching you with inventory from your local distributor, We provide actual photos for your confirmation before packaging and shipping.
Please select the expedited option at checkout. For lightweight items, you can request "overnight or 2-day shipping". Our customer service will then confirm the expedited schedule (including preparation and shipping), with most orders delivered globally within 2-5 days.
Please ensure that you are purchasing a genuine product, which includes original manufacturer certification and professional test reports.
Unless caused by human error, we promise free replacement or full refund. We provide a total of 3 years of warranty coverage, comprising a 1-year original manufacturer's warranty and an additional 2-year(In-House Warranty) extended warranty for repairs and support.
We offer a repair kit that includes essential installation parts prone to wear and tear. For details, please contact our customer service.
We support a variety of mainstream payment methods (e.g., Visa, PayPal, TT). Our checkout process is quick and secure, with orders processed within the same day.
If you require a single, high-volume delivery, please inquire about our bulk order or wholesale pricing. We can then coordinate a delivery schedule and shipping time.
1. Before shipping, we will send you photos of the actual product for your confirmation ( eg. nameplate, appearance, and report).
2. The product comes with a 1-year manufacturer warranty policy and 3-year in-house warranty.
3. If the product is damaged during transportation or cannot be repaired due to non-human-caused within 1 year, no return, we will directly refund or resend the new product.
4. For select items, we will include a repair kit ( Special Needs Customer Service ).
5. Enjoy a worry-free experience throughout the entire process. Feel free to request quotes and place orders with confidence, we will provide 5-star service until you are satisfied.
6. Shipping and Taxes: See Quotation.
FAQs
Q1: For our application (e.g., Cold Storage vs. Process Chilling), should we choose Screw, Reciprocating, or Centrifugal compressors?
A: The choice depends on capacity and application. We recommend: Screw for large, stable loads and high efficiency; Reciprocating for smaller capacity or specialized low-temperature use; and Centrifugal for very high-capacity HVAC/chiller applications. We offer a data-driven sizing analysis.
Q2: Are your system accessories (e.g., oil filters, valves, controls) proprietary, or can we easily source compatible, standardized replacement parts globally?
A: Our systems are designed with industry-standard interfaces and utilize high-quality, globally recognized components. We ensure that critical accessories and spare parts are readily available through our own supply chain and cross-reference to minimize emergency lead times.
Q3: How do you precisely calculate the required cooling load (BTU/hr or kW) and determine the correct compressor size for my specific process/cold room?
A: We perform a comprehensive heat load analysis that considers ambient temperature, product load, air infiltration, insulation U-values, and processing time. We use this data to select a compressor with the optimal capacity and EER/COP (Energy Efficiency Ratio/Coefficient of Performance) for your target temperature.
Q4: What is the warranty period for your main compressor unit and core accessories, and what is your guaranteed lead time for emergency spare parts?
A: We provide a comprehensive warranty package (typically $12$-$24$ months on the compressor). We maintain a global inventory of critical spares and commit to an emergency parts lead time (e.g., $24$-$72$ hours to major industrial hubs) to ensure minimal operational disruption.
Q5: What is the system's Total Cost of Ownership (TCO), and what technologies do you employ to maximize energy efficiency (SEER/IPLV)?
A: We provide a detailed TCO breakdown encompassing purchase, installation, maintenance, and projected energy costs. We prioritize Variable Speed Drive (VSD) compressors and advanced control systems to modulate capacity, minimizing energy consumption during part-load operation and maximizing long-term savings.
Q6: We conduct annual targeted procurement of compressors and repair kits to sustain production. I'd like to know if there are any contract discounts available?
A: Absolutely. Our primary strength lies in supply capability. Whether it's OEM manufacturing or global inventory searches—from components to complete units—we can match your needs with the nearest partner's inventory for rapid delivery. Our global alliance enables transactions at wholesale agency rates. Welcome aboard! Cheers!!
