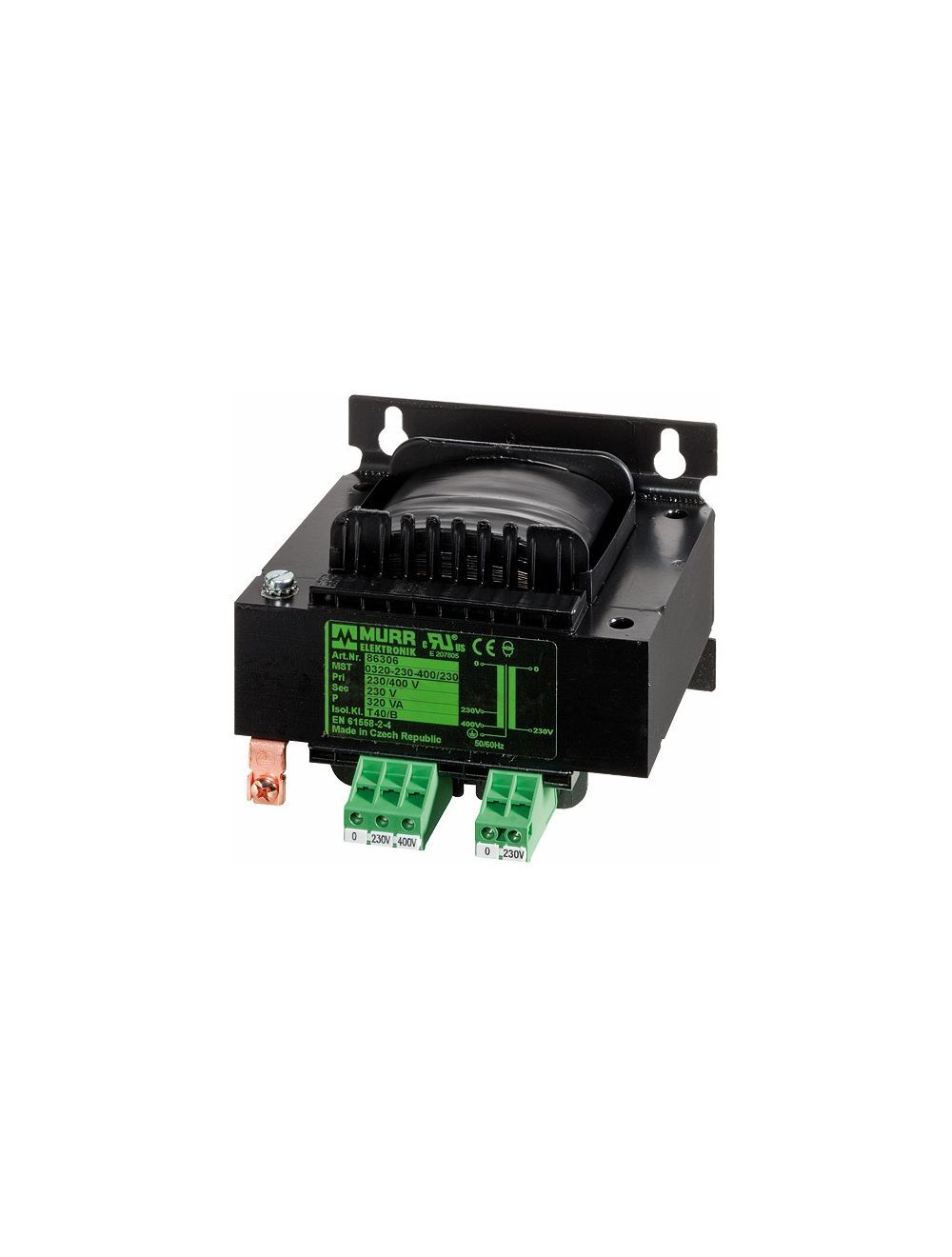

Murr Transformer 6686326

Input
Input voltage 230/400 V AC
Frequency 50...60 Hz
Input current 1.52 A (230 V AC); 0.88 A (400 V AC)
Inrush current 17.5 A (230 V AC); 10.1 A (400 V AC)
Short-circuit current 28 A (230 V AC); 16.1 A (400 V AC)
General data
Standards EN 61558-1, EN 61558-2-6, EN 62041 category 0
Test isolation voltage 4 kV (prim./sec.)
Mounting method Key-hole mounting
Temperature range -20...+40 Celsius degrees (storage temperature -40...+80 Celsius degrees)
Dimensions H x W x D 92.2x120x122.4 mm
Fixing centers a x b x c 74.4x90x5.8 mm
Drill hole D 5.8x10 mm
Output
Output voltage 24 V AC (SELV)
Output rating 320 VA
