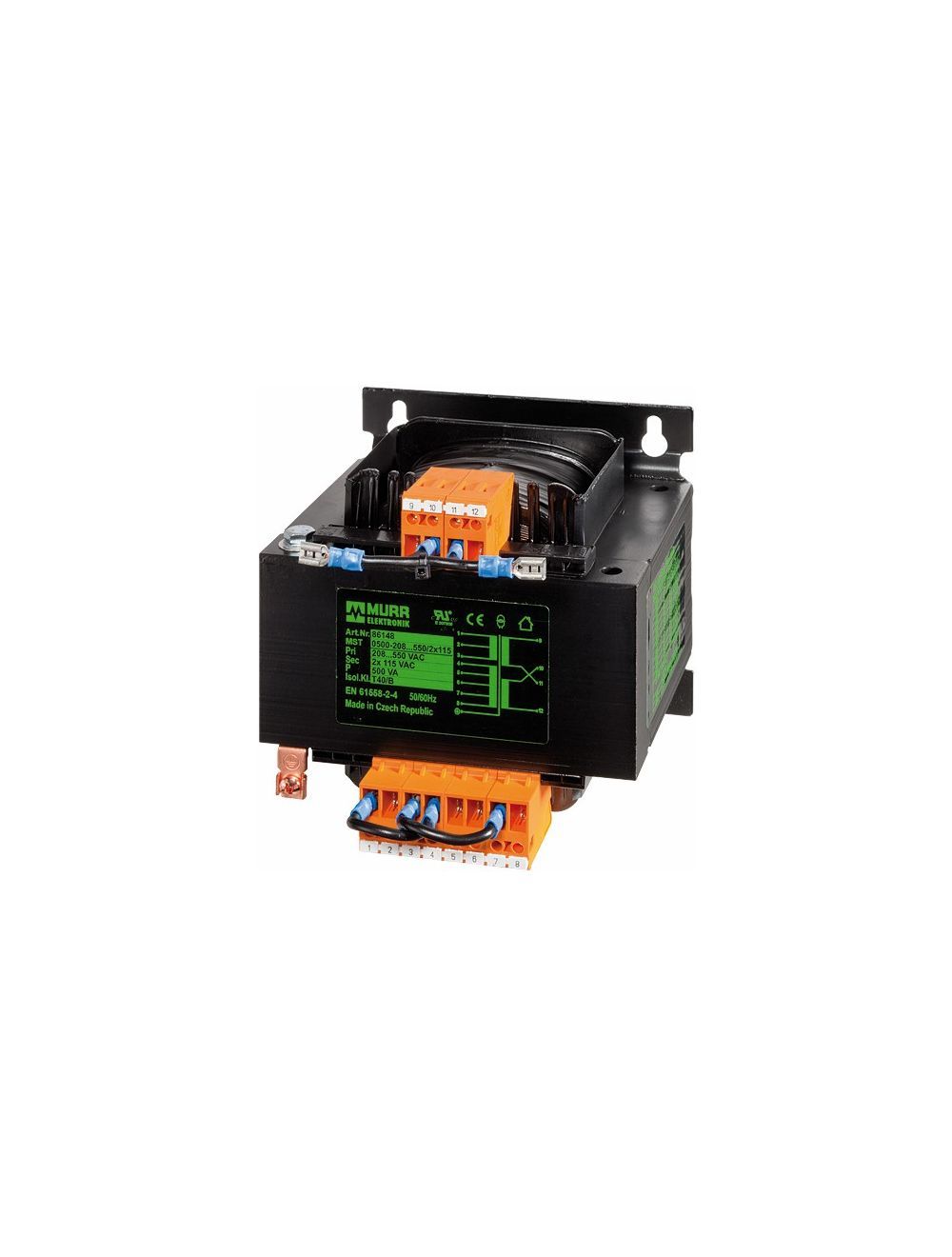

Murr Transformer 86147

Input
Input voltage 208, 230, 380, 400, 420, 440, 460, 480, 500, 525, 550 V AC
Input current 2.12 A (208 V AC); 0.8 A (550 V AC)
Inrush current 38 A (208 V AC); 15 A (550 V AC)
Short-circuit current 47 A (208 V AC); 18 A (550 V AC)
Frequency 50...60 Hz
General data
Standards EN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage 4 kV (prim./sec.)
Mounting method Key-hole mounting
Dimensions H x W x D 115x135x132 mm
Fixing centers a x b x c 87x104 mm
Drill hole D 5.8x10 mm
Temperature range -20...+40 Celsius degrees (storage temperature -20...+80 Celsius degrees)
Output
Output voltage 1 x 230, 1 x 115, 2 x 115 V AC
Output rating 400 VA
