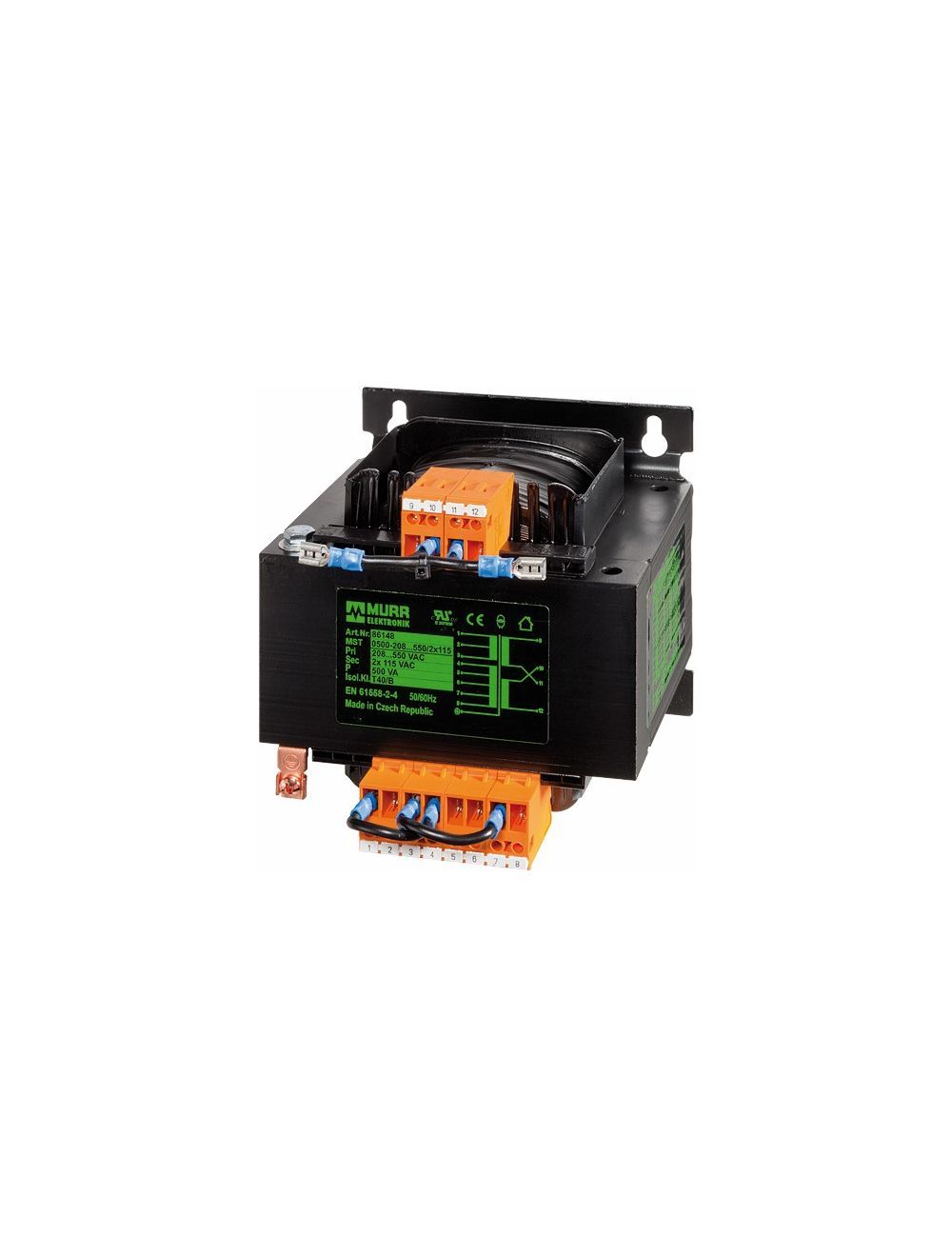

Murr Transformer 86151

Input
Input voltage 208, 230, 380, 400, 420, 440, 460, 480, 500, 525, 550 V AC
Input current 4.73 A (230 V AC); 2.72 A (400 V AC)
Inrush current 66 A (230 V AC); 38 A (400 V AC)
Short-circuit current 148 A (230 V AC); 85 A (400 V AC)
Frequency 50...60 Hz
General data
Standards EN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage 4 kV (prim./sec.)
Mounting method Key-hole mounting
Dimensions H x W x D 128x174x160 mm
Fixing centers a x b x c 102x135x7 mm
Drill hole D 7x11 mm
Temperature range -20...+40 Celsius degrees (storage temperature -40...+80 Celsius degrees)
Output
Output voltage 1 x 230, 1 x 115, 2 x 115 V AC
Output rating 1 000 VA
