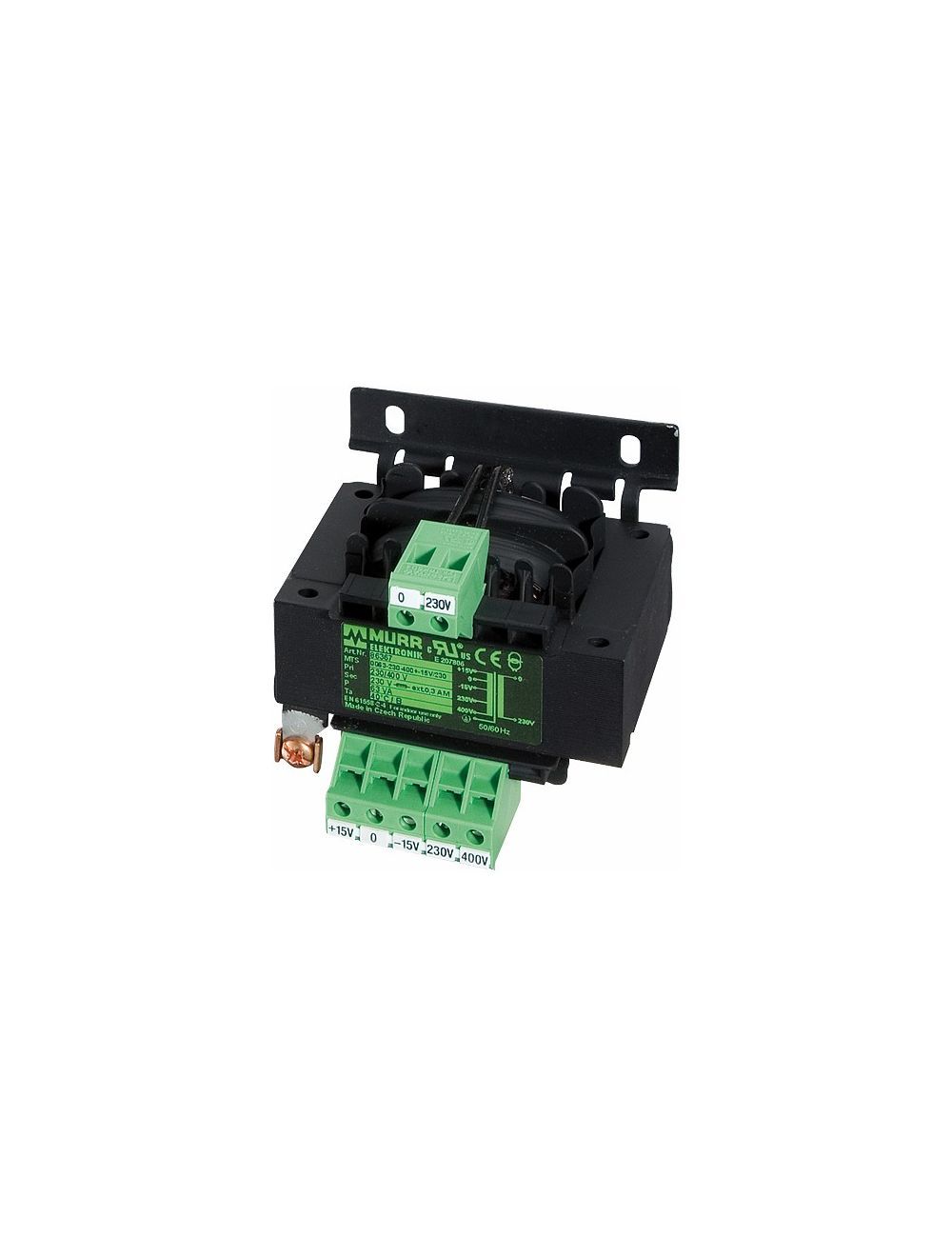

Murr Transformer 86367

Input
Input voltage 230/400 +/-15 V AC
Frequency 50...60 Hz
Input current 0.32 A (230 V AC); 0.18 A (400 V AC)
Inrush current 2 A (230 V AC); 1.15 A (400 V AC)
Short-circuit current 2.64 A (230 V AC); 1.52 A (400 V AC)
General data
Standards EN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage 4 kV (prim./sec.)
Mounting method Long-hole mounting or DIN-rail mountable TH35 (EN 60715)
Temperature range -20...+40 Celsius degrees (storage temperature -40...+80 Celsius degrees)
Drill hole D 4.8x8.4 mm
Dimensions H x W x D 79x78x93 mm
Fixing centers a x b x c 56x56x4.8 mm
Output
Output voltage 230 V AC
Output rating 63 VA
