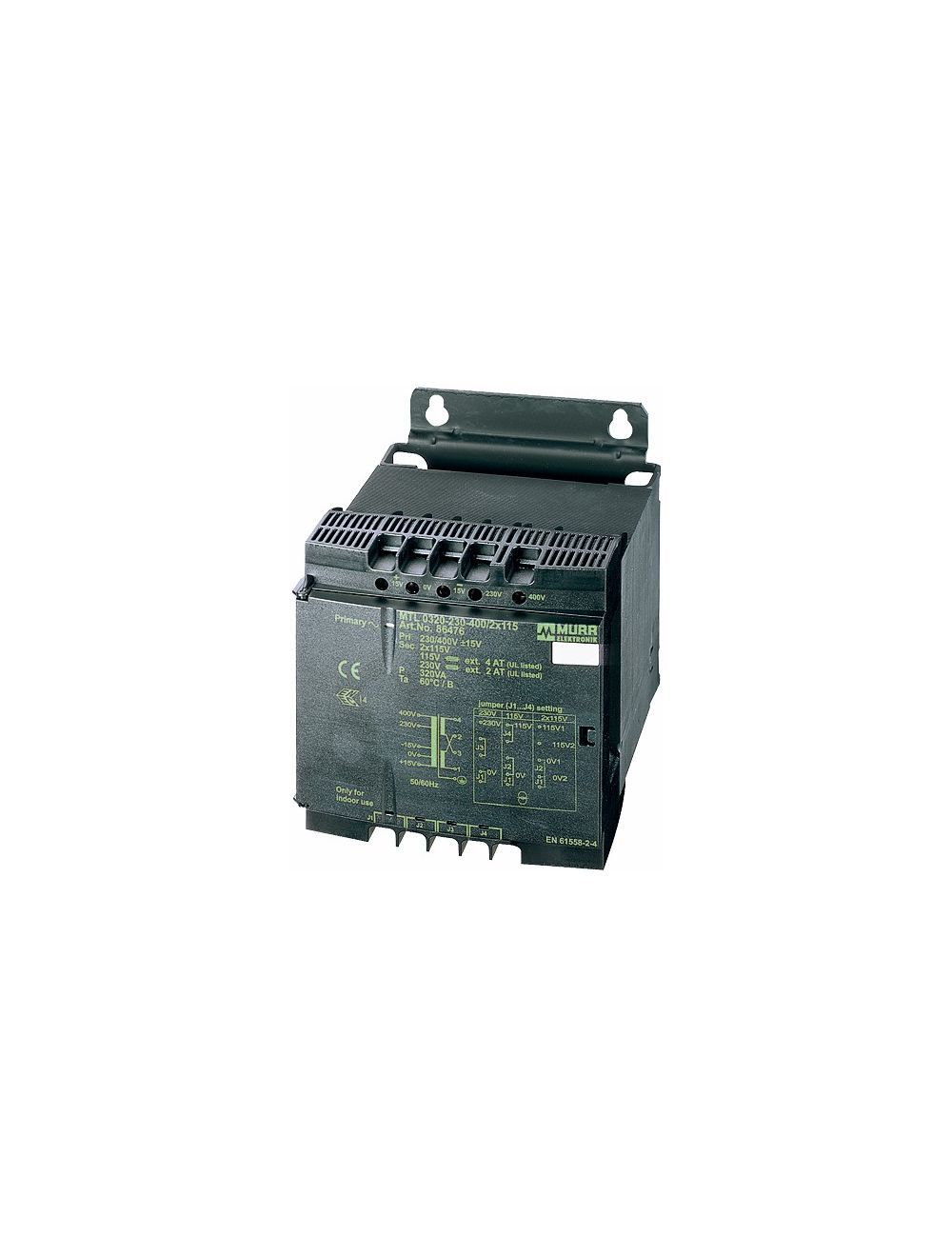

Murr Transformer 86453

Input
Input voltage 230/400 +/-15 V AC
Input current 0.52 A (230 V AC); 0.3 A (400 V AC)
Inrush current 5.4 A (230 V AC); 3.12 A (400 V AC)
Short-circuit current 10 A (230 V AC); 5.77 A (400 V AC)
Frequency 50...60 Hz
Technical Data
LED display LED (green) for input voltage
General data
Test isolation voltage 5.1 kV (prim./sec.)
Standards EN 61558-2-4, EN 61558-2-6, EN 62041 category 0
Drill hole D 5.5x9 mm
Mounting method DIN-rail mountable TH35-15 (EN 60715) or for key-hole mounting
Fixing centers a x b x c 96x60x5.5 mm
Dimensions H x W x D 108x87x139 mm
Temperature range -20...+60 Celsius degrees, no condensation
Output
Output voltage 1 x 24, 1 x 48, 2 x 24 V AC
Output rating 100 VA
