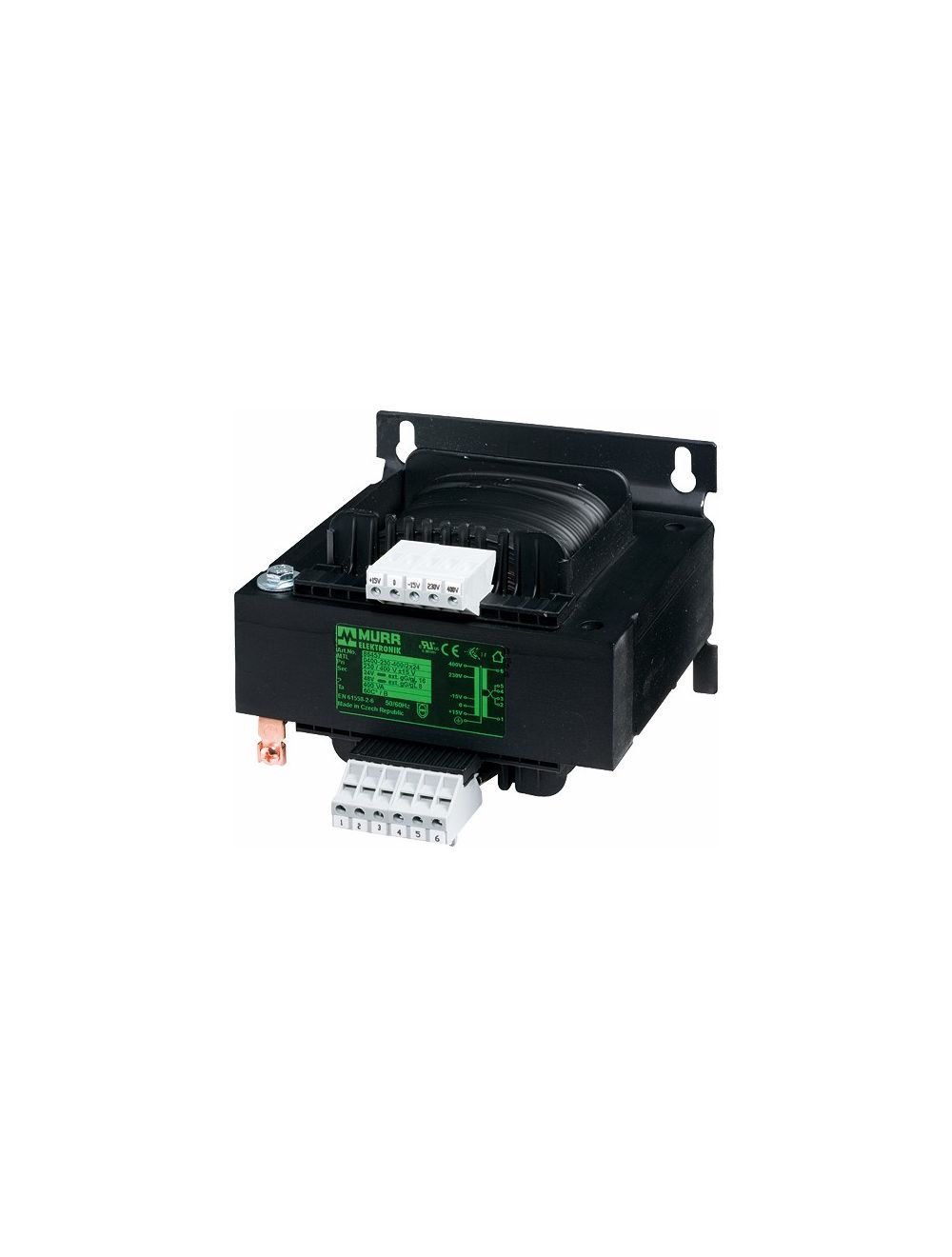

Murr Transformer 86457

Input
Input voltage 230/400 +/-15 V AC
Inrush current 32.2 A (230 V AC); 18.58 A (400 V AC)
Short-circuit current 61.9 A (230 V AC); 35.7 A (400 V AC)
Input current 2.04 A (230 V AC); 1.18 A (400 V AC)
Frequency 50...60 Hz
General data
Test isolation voltage 5.1 kV (prim./sec.)
Standards EN 61558-2-4, EN 61558-2-6, EN 62041 category 0
Drill hole D 7x11 mm
Mounting method DIN-rail mountable TH35-15 (EN 60715) or for key-hole mounting
Fixing centers a x b x c 90.6x122x7 mm
Dimensions H x W x D 112.5x150x160 mm
Temperature range -20...+60 Celsius degrees, no condensation
Output
Output voltage 1 x 24, 1 x 48, 2 x 24 V AC
Output rating 400 VA
