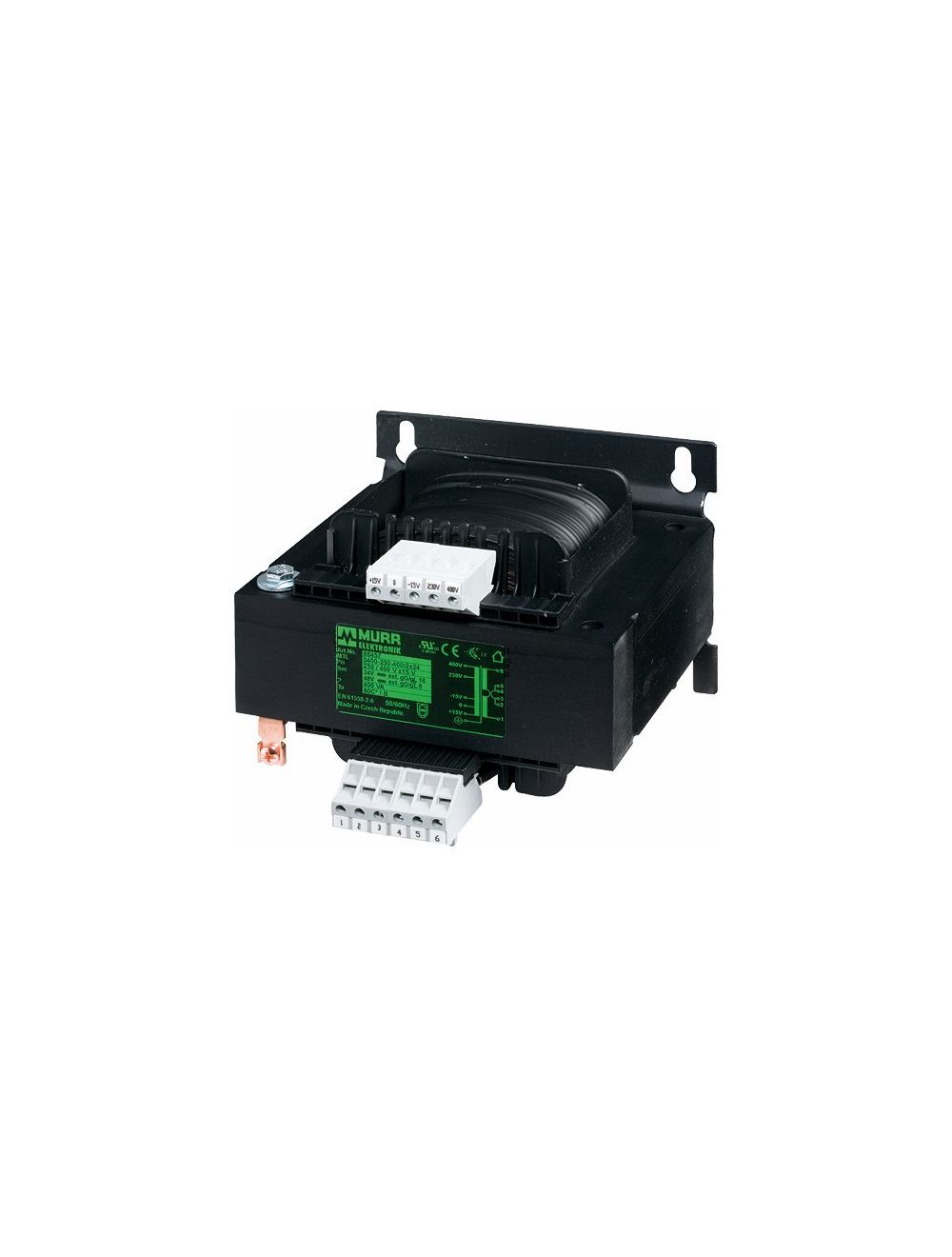

Murr Transformer 86484

Input
Input voltage 230/400 +/-15 V AC
Frequency 50...60 Hz
Inrush current 83 A (230 V AC); 42 A (400 V AC)
Short-circuit current 165 A (230 V AC); 94 A (400 V AC)
Input current 4.6 A (230 V AC); 2.7 A (400 V AC)
General data
Standards EN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage 5.8 kV (prim./sec.)
Temperature range -20...+40 Celsius degrees, no condensation
Dimensions H x W x D 156x150x146 mm
Fixing centers a x b x c 134x122x7 mm
Drill hole D 7x11 mm
Mounting method Key-hole mounting
Output
Output voltage 1 x 230, 1 x 115, 2 x 115 V AC
Output rating 1 000 VA
