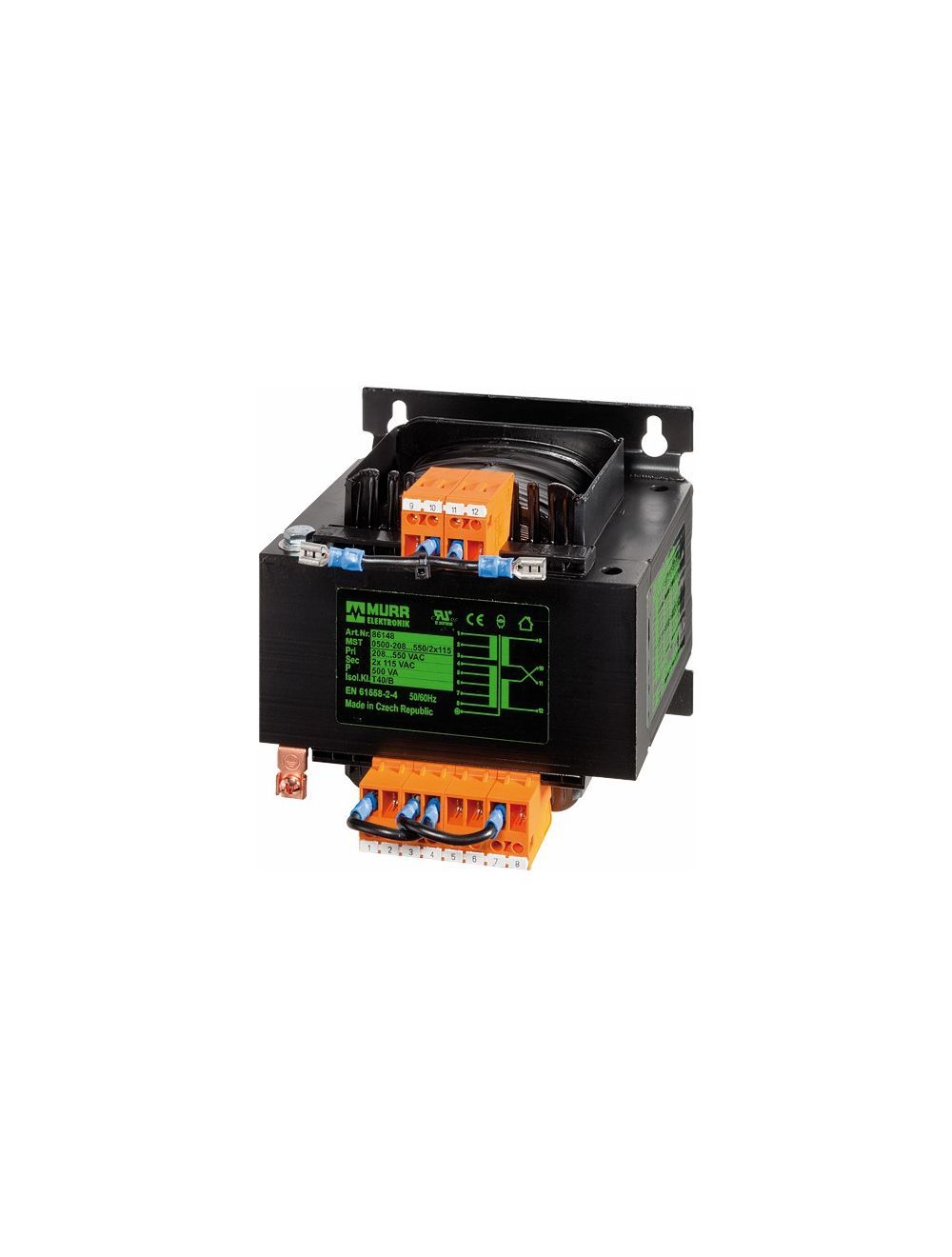

Murr Transformer 866058

Input
Input voltage 220, 380, 440, 500, 530 V AC
Input current 2.5 A (220 V AC); 1.1 A (530 V AC)
Inrush current 59 A (220 V AC); 27 A (530 V AC)
Short-circuit current 52 A (220 V AC); 22 A (530 V AC)
Frequency 50...60 Hz
General data
Standards EN 61558-1, EN 61558-2-6, EN 62041 category 0
Test isolation voltage 6.3 kV (prim./sec.)
Mounting method Key-hole mounting
Dimensions H x W x D 109x150x148 mm
Fixing centers a x b x c 82x120x10 mm
Drill hole D 7x15 mm
Temperature range -20...+60 Celsius degrees (storage temperature -20...+80 Celsius degrees)
Output
Output voltage 24/230 V AC
Output rating 500 VA
