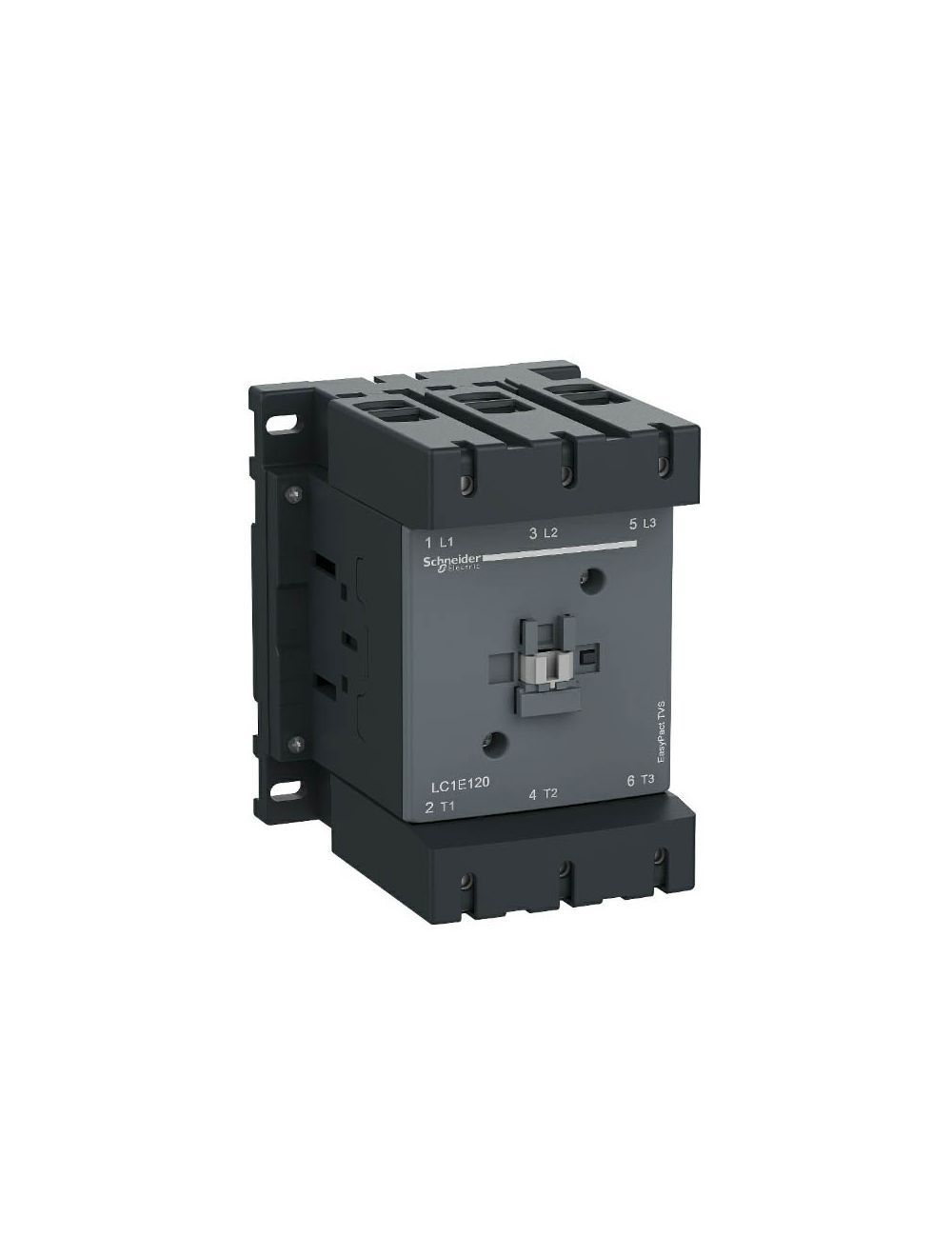

Schneider Contactor LC1E120B5N
Basic Infomation
Brand name:Schneider
Model number:LC1E120B5N
Product Condition:Factory New / New Surplus
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Contact support to obtain
Payment methods:
Consulting support, including your preferred payment methods.
The Schneider Contactor is high quality!
Rated working voltage [Ue]
Power circuit: <= 690 V AC 50/60 Hz
Rated working current [Ie]
120 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
150 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
Motor power (kW)
37 kW at 220/230 V AC 50/60 Hz
55 kW at 380/400 V AC 50/60 Hz
59 kW at 415/440 V AC 50/60 Hz
75 kW at 500 V AC 50/60 Hz
80 kW at 660/690 V AC 50/60 Hz
Control loop characteristics
AC at 50 Hz standard
Control circuit voltage
24 V AC 50 Hz
Auxiliary contact type
1 NO + 1 NC
Rated impulse withstand voltage [Uimp]
8 kV coil not connected to the power circuit conforming to IEC 60947
