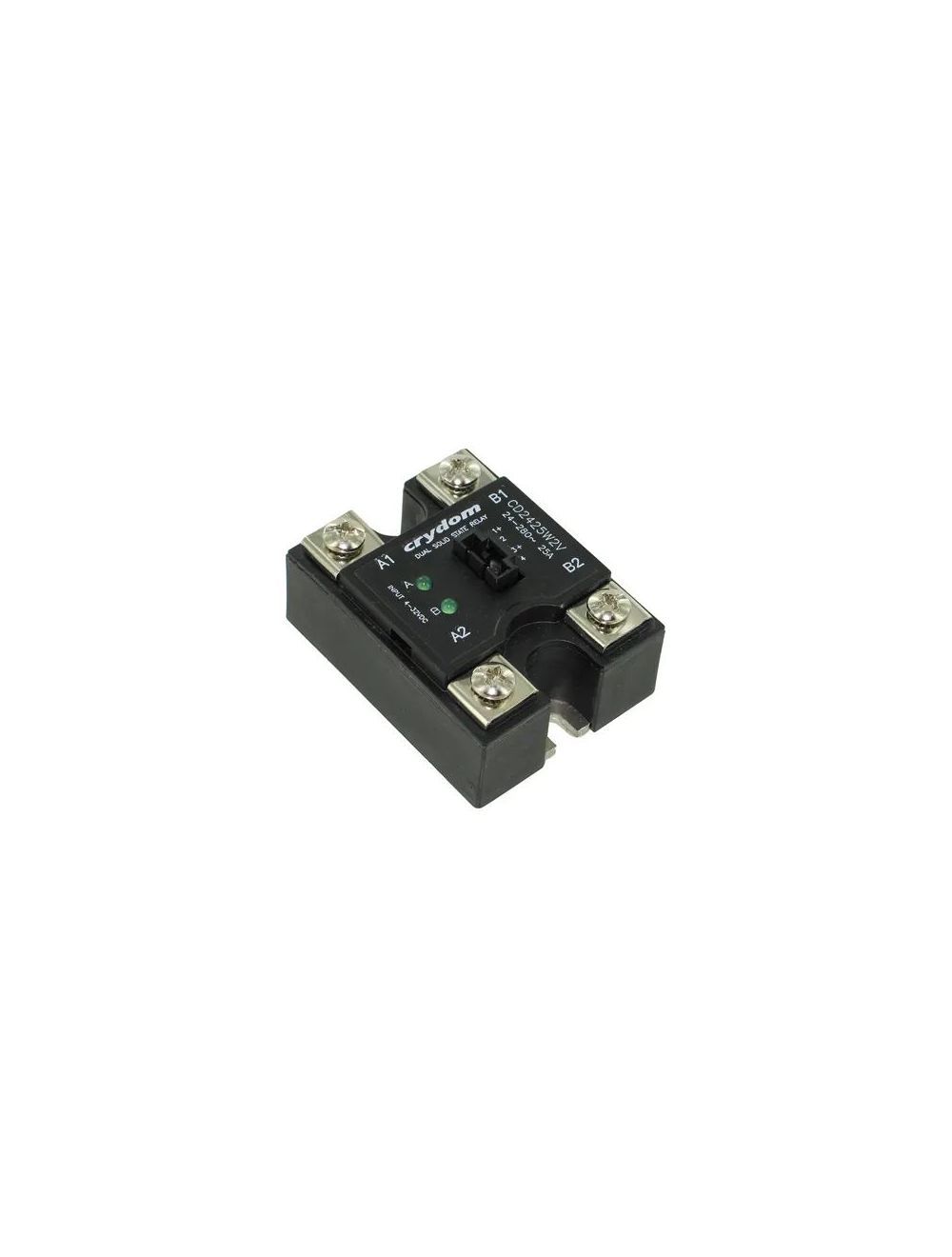

Sensata-Crydom Relay CD2425W2V

The Sensata-Crydom Relay is high quality! Cover：not included
Operating Voltage:24-280 VAC
Rated Load Current:25 Amps
Control Voltage:4-32 VDC
Input Connector:Key Locking Connector
Output Orientation:A channel on left, B channel on right
Thermal Pad:not included
Control Voltage:4-32 VDC
Operating Voltage (47-440Hz) [Vrms] per UL-508:24-280
Nominal Voltage (47-440Hz) [Vrms] per EN 62314:280
Load Current Range [Arms]:0.15-25
Transient Overvoltage [Vpk]:600
Maximum Off-State Leakage Current @ Rated Voltage [mArms]:1.0
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/μsec]:500
Maximum 1 Cycle Surge Current (50/60) [Apk]:275/300
Maximum Surge Current 50Hz (20ms) [Apk]:275
Maximum On-State Voltage Drop @ Rated Current [Vpk]:1.3
Thermal Resistance Junction to Case (Rjc) [°C/W]:0.65
Maximum I2 t for Fusing 50/60Hz (1/2 cycle) [A2 sec]:380/370
Minimum Power Factor (with Maximum Load):0.5
INPUT:
Control Voltage Range 4-32 VDC
Minimum Turn-On Voltage 4 VDC
Minimum Turn-Off Voltage 1.0 VDC
Typical Input Current 10 mA @ 12 VDC
Nominal Input Impedance See Datasheet
Maximum Turn-On Time [msec] 1/2 Cycle
Maximum Turn-Off Time [msec] 1/2 Cycle
