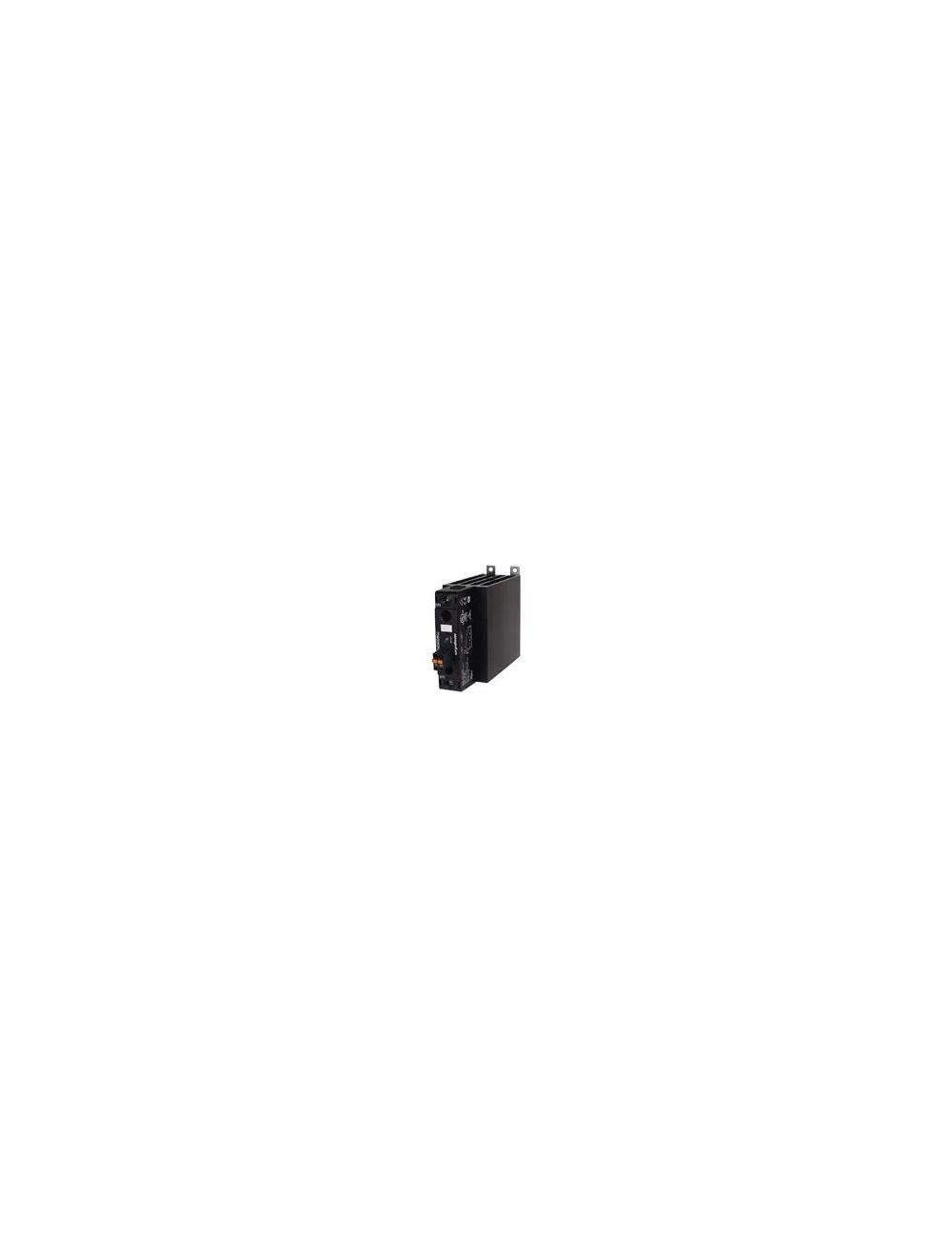

Sensata-Crydom Relay DR4560A60J

The Sensata-Crydom Relay is high quality! OUTPUT:
Description 60A
Operating Voltage (45-65Hz) [VRMS] 48-600
Transient Overvoltage [Vpk] 1200
Maximum Off-State Leakage Current @ Rated Voltage [mARMS] 1
Minimum Off-State dV/dt @ Maximum Rated Voltage [V/sec] 500
Load Current, General Use UL508/LC A IEC62314 @ 40°C [ARMS] 60
Load Current, Motor Starting UL508 FLA/LC B IEC62314 @ 40°C [ARMS] 26/14
Minimum Load Current [mARMS] 150
Maximum 1 Cycle Surge Current (50/60Hz) [Apk] 1290/1350
Maximum On-State Voltage Drop @ Rated Current [VRMS] 1.15
Maximum 1/2 Cycle I2 t for Fusing (50/60Hz) [A2 sec] 8320/7593
Maximum Power Dissipation @ Rated Current [W] 69
Minimum Power Factor (at Maximum Load) 0.5
Motor Rating UL 508/IEC62314 [HP (kW)]: 120 VAC 2 (1.5)
Motor Rating UL 508/IEC62314 [HP (kW)]: 240 VAC 5 (3.73)
Motor Rating UL 508/IEC62314 [HP (kW)]: 480 VAC 10 (7.4)
INPUT:
Control Voltage Range 90-280 VAC/VDC
Maximum Reverse Voltage -
Minimum Turn-On Voltage 90 VAC/VDC
Must Turn-Off Voltage 5 VAC/VDC
Minimum Input Current (for on-state) 3 mA
Maximum Input Current 4 mA
Nominal Input Impedance Switch Mode
Maximum Turn-On Time [msec] 20
Maximum Turn-Off Time [msec] 30
