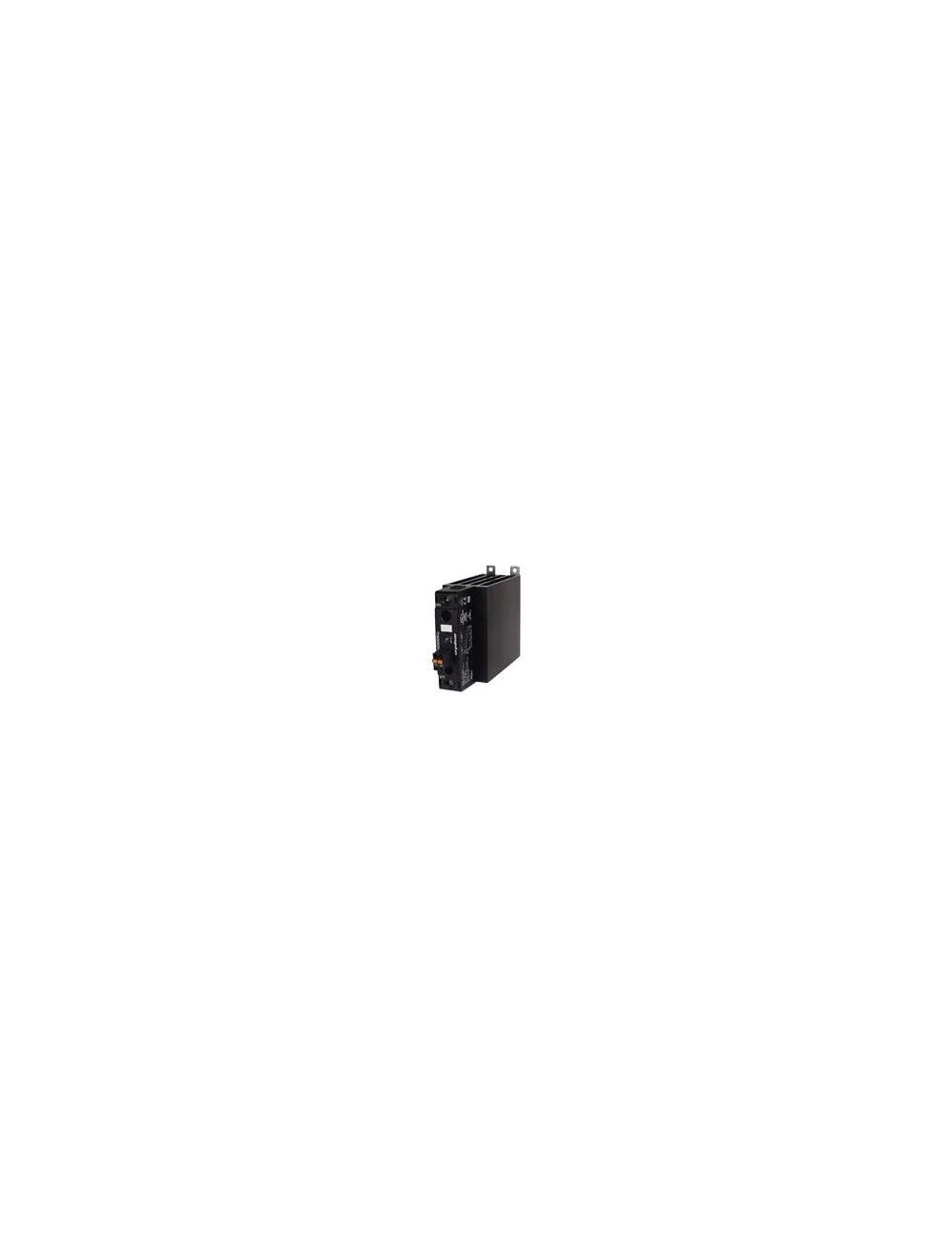

Sensata-Crydom Relay DR4560D45J

The Sensata-Crydom Relay is high quality! OUTPUT:
Description 45A
Operating Voltage (45-65Hz) [VRMS] 48-600
Transient Overvoltage [Vpk] 1200
Maximum Off-State Leakage Current @ Rated Voltage [mARMS] 1
Minimum Off-State dV/dt @ Maximum Rated Voltage [V/sec] 500
Load Current, General Use UL508/LC A IEC62314 @ 40°C [ARMS] 45
Load Current, Motor Starting UL508 FLA/LC B IEC62314 @ 40°C [ARMS] 14/7.6
Minimum Load Current [mARMS] 100
Maximum 1 Cycle Surge Current (50/60Hz) [Apk] 716/750
Maximum On-State Voltage Drop @ Rated Current [VRMS] 1.25
Maximum 1/2 Cycle I2 t for Fusing (50/60Hz) [A2 sec] 2563/2343
Maximum Power Dissipation @ Rated Current [W] 52
Minimum Power Factor (at Maximum Load) 0.5
Motor Rating UL 508/IEC62314 [HP (kW)]: 120 VAC 1 (0.74)
Motor Rating UL 508/IEC62314 [HP (kW)]: 240 VAC 3 (2.2)
Motor Rating UL 508/IEC62314 [HP (kW)]: 480 VAC 5 (3.7)
INPUT:
Control Voltage Range 4-32 VDC
Maximum Reverse Voltage -32 VDC
Minimum Turn-On Voltage 4 VDC
Must Turn-Off Voltage 1 VDC
Minimum Input Current (for on-state) 7 mA
Maximum Input Current 15 mA
Nominal Input Impedance Current Limited
Maximum Turn-On Time [msec] 1/2 Cycle
Maximum Turn-Off Time [msec] 1/2 Cycle
