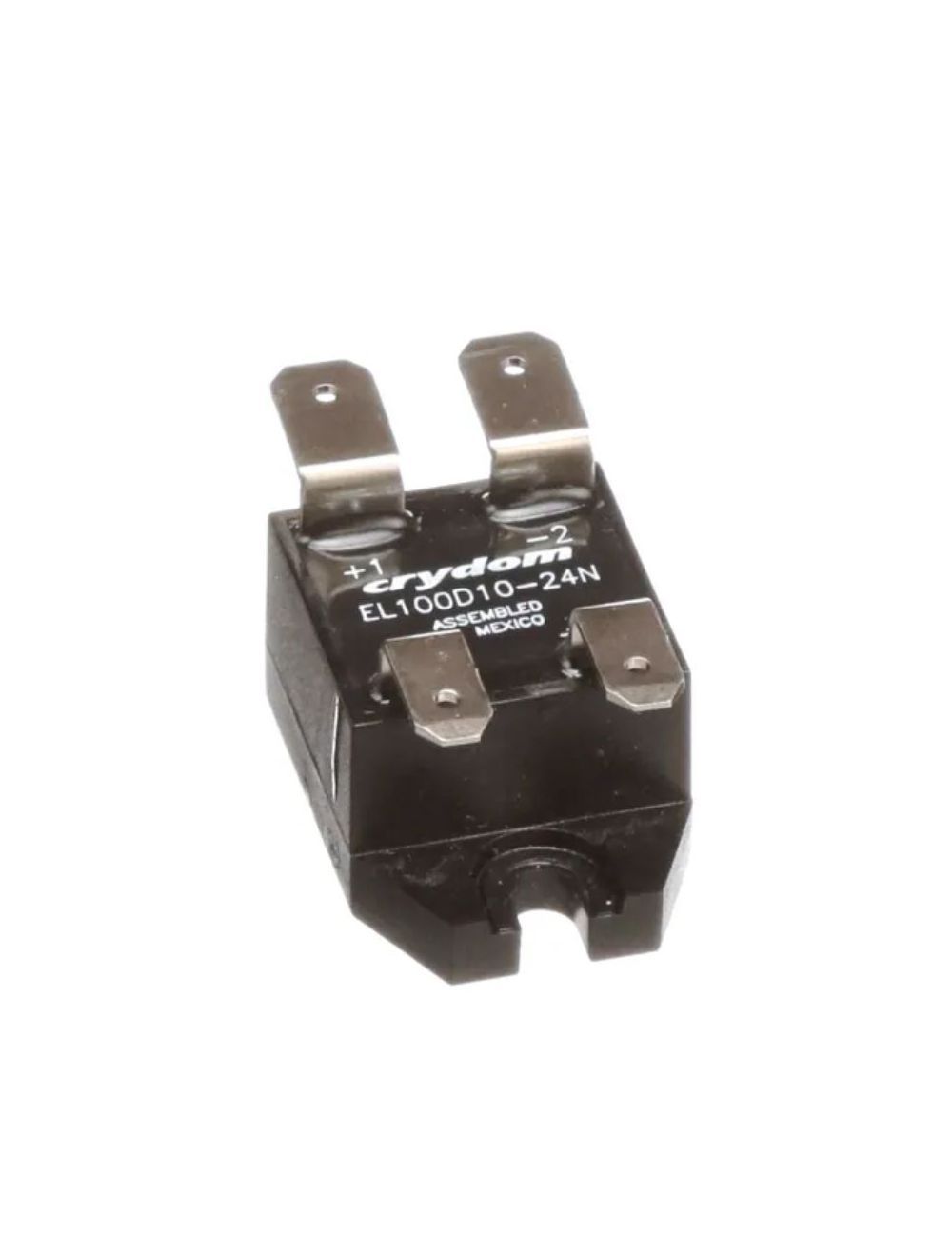

Sensata-Crydom Relay EL100D10-24N

The Sensata-Crydom Relay is high quality! Control Voltage:21-27 VDC
Output Voltage:3-100
Related Load Current:20 Amps
Control Voltage:10-14 VDC
Termination:90o bent Quick Connect (30 Amps model only)
OUTPUT:
Operating Voltage [VDC]:3-100
Maximum Load Current [Adc]:10
Minimum Load Current [mAdc]:2.5
Maximum Surge Current Non-Repetitive (10ms) [A]:100
Maximum Off-State Leakage Current @ Rated Voltage [μAdc]:100
Maximum On-State Resistance @ Rated Current (Rds-on) [Ohm]:0.02
Maximum On-State Voltage Drop @ Rated Current [VDC]:0.25
INPUT:
Control Voltage Range:21-27 VDC
Minimum Turn-On Voltage:21 VDC
Must Turn-Off Voltage:1 VDC
Minimum Input Current:9 mA
Maximum Input Current:14 mA
Nominal Input Impedance [Ohms]:2k
Maximum Turn-On Time [msec]:1
Maximum Turn-On Time [msec]:300
