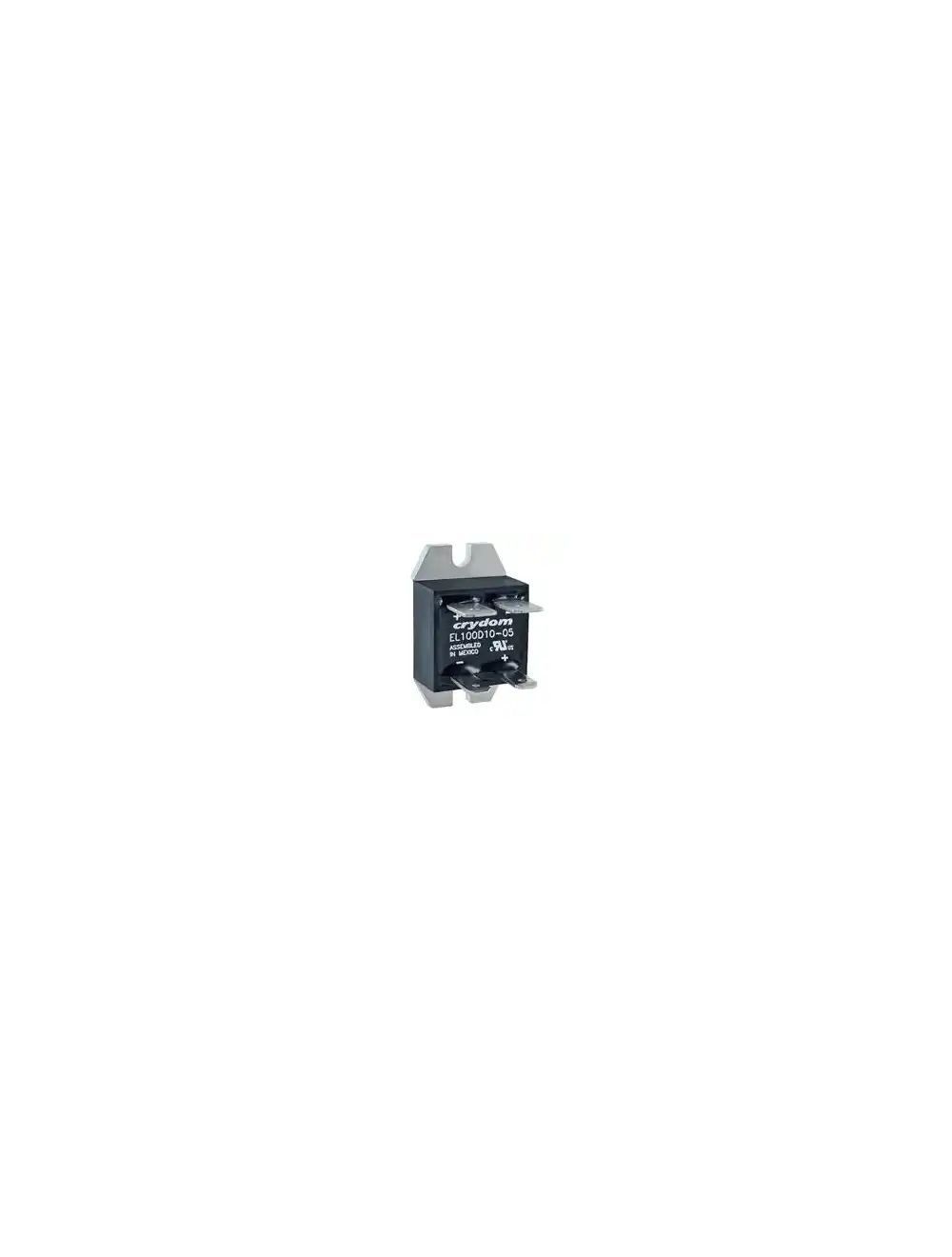

Brand name:Sensata-Crydom
Model number:EL240A30-05NP
Price:Inquiry for discount
Packaging:Wooden Box / Carton
Delivery time:7~14 days (About)
Warranty:1 Year
Parameter details:Contact support to obtain
Payment methods:Consulting support, including your preferred payment methods.
Quick Quote
The Sensata-Crydom Relay is high quality! Control Voltage:4-8 VDC Output Voltage:24-280 VAC Related Load Current:30Amps Switching Type:Zero Voltage Turn-On Control Voltage: 4-8 VDC Termination:90o bent Quick Connect (30 Amps model only) Overvoltage Protection:Included OUTPUT: Operating Voltage (47-63Hz) [Vrms]:24-280 Maximum Load Current [Adc):30 Minimum Load Current [mArms]:250 Transient Overvoltage [Vpk]:600 Maximum Surge Current (50/60Hz 1 Cycle) [Apk]:260/280 Maximum I2t for Fusing (50/60Hz 1/2 cycle) [A2 sec]:338/326 Minimum Off-State dv/dt @ Maximum Rated Voltage [V/μsec]:500 Maximum Off-State Leakage Current @ Rated Voltage [mArms]:0.1 Thermal Resistance Junction to Case (Rjc) [°C/W]:0.9 Maximum On-State Voltage Drop @ Rated Current [Volts]:1.3 Minimum Power Factor (with Maximum Load):0.7 INPUT: Control Voltage Range:4-8 VDC Minimum Turn-On Voltage:4 VDC Must Turn-Off Voltage:1 VDC Minimum Input Current:6 mA Maximum Input Current: 21 mA Maximum Turn-On Time [msec]:1/2 Cycle Maximum Turn-Off Time [msec]:1/2 Cycle
